Thread Form Overlays

1:16 8TPI/1:16 10TPI/1:16  5TPI BOX/1:16  5TPI PIN/1:12  5TPI PIN/1:12  5TPI BOX

Model

Applicable pipe thread

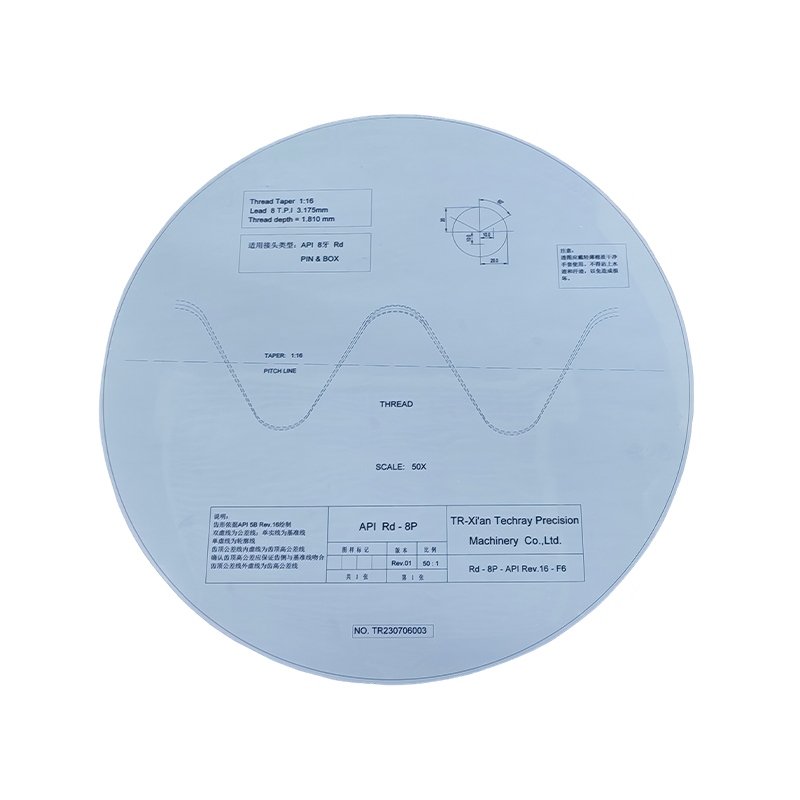

1:16 8TPI

API Rd 8 TPI 3/4"TPF

1:16 10TPI

API Rd 10TPI 3/4"TPF

1:16 5TPI BOX

3/4"TPF,5 TPI,API Buttress Casing, Internal

1:16 5TPI PIN

3/4"TPF,5 TPI,API Buttress Casing, External, 4 1/2 "- 7 5/8"

3/4"TPF,5 TPI,API Buttress Casing, External, 8 5/8 "- 13 3/8"

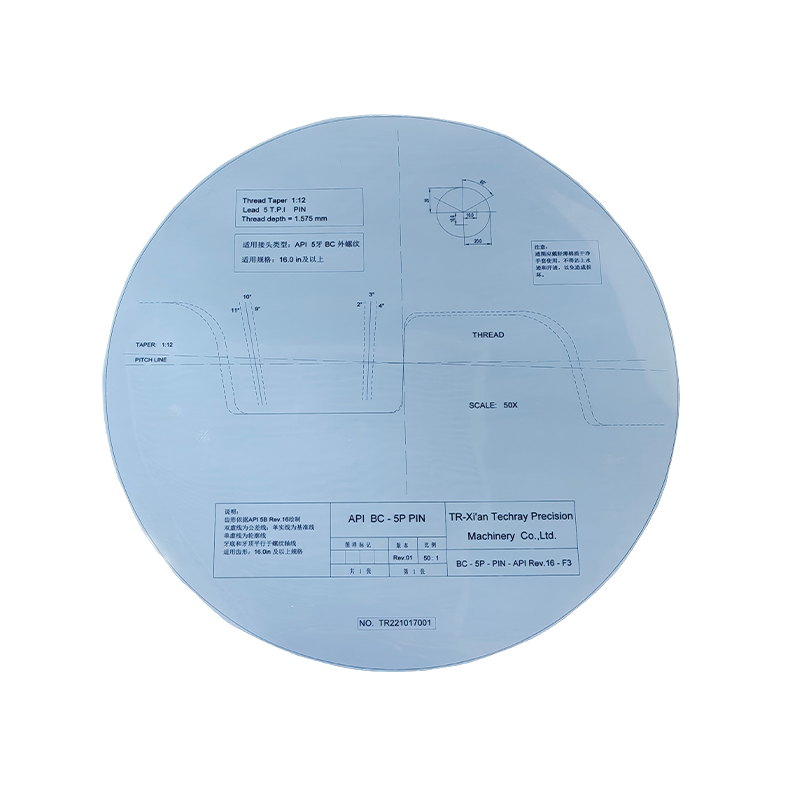

1:12 5TPI PIN

1"TPF,5 TPI,API Buttress Casing, External

1:12 5TPI BOX

1"TPF,5 TPI,API Buttress Casing, Internal

×
