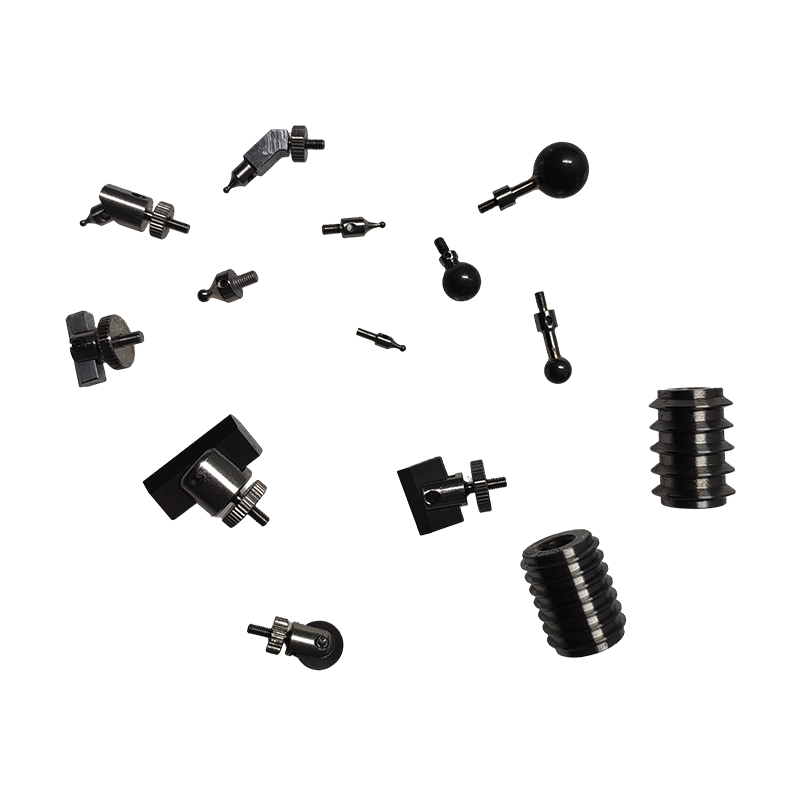

Accessories

PL01/PL02/PL03/PL04/PL05/PL06/PL07/PL08/PL09/PL01-S/PL02-S/PL03-S/PL04-S/PL05-S/PL06-S/PL07-S/PL08-S/PL09S/PT01/PT02/PT03/PT04/PT05/PT06/PT07/PT08/PT09/DMG01/DMG02/PH05I/PH06I/PH05E/PH06E/PH01I/PH02I/PH03I/PH04I/PH01E/PH02E/PH03E/PH04E/ETPD01-0.625/ETPD02-0.625/ETPD03-1.0/DPED-13/BGT2-4TPI/TTMG-12/T464/TPD-20




Model

Description

PL01

Φ5.987mm(0.2357in)Contact Point for 3 TPI Hughes Slim Line H-90

PL02

Φ5.131mm(0.202in)Contact Point for 3.5 TPI All Hughes H-90

PL03

Φ3.658mm(0.144in)Contact Point for 4 TPI API Rotary Shouldered Connections

PL04

Φ2.921mm(0.115in)Contact Point for 5 TPI API Rotary Shouldered Connections

PL05

Φ2.438mm(0.096in)Contact Point for 6 TPI API Rotary Shouldered Connections

PL06

Φ1.829mm(0.072in)Contact Point for 8 TPI API Tubing and Casing

PL07

Φ1.575mm(0.062in)Contact Point for 5 TPI API Buttress Casing

PL08

Φ1.448mm(0.057in)Contact Point for 10 TPI API Tubing and Line Pipe

PL09

Φ1.27mm(0.05in)Contact Point for 11.5 TPI API Line Pipe

PL01-S

Φ5.987mm(0.2357in)Contact Point for 3 TPI Hughes Slim Line H-90

PL02-S

Φ5.131mm(0.202in)Contact Point for 3.5 TPI All Hughes H-90

PL03-S

Φ3.658mm(0.144in)Contact Point for 4 TPI API Rotary Shouldered Connections

PL04-S

Φ2.921mm(0.115in)Contact Point for 5 TPI API Rotary Shouldered Connections

PL05-S

Φ2.438mm(0.096in)Contact Point for 6 TPI API Rotary Shouldered Connections

PL06-S

Φ1.829mm(0.072in)Contact Point for 8 TPI API Tubing and Casing

PL07-S

Φ1.575mm(0.062in)Contact Point for 5 TPI API Buttress Casing

PL08-S

Φ1.448mm(0.057in)Contact Point for 10 TPI API Tubing and Line Pipe

PL09-S

Φ1.27mm(0.05in)Contact Point for 11.5 TPI API Line Pipe

PT01

Φ5.987mm(0.2357in)Contact Point for 3 TPI Hughes Slim Line H-90

PT02

Φ5.131mm(0.202in)Contact Point for 3.5 TPI All Hughes H-90

PT03

Φ3.658mm(0.144in)Contact Point for 4 TPI API Rotary Shouldered Connections

PT04

Φ2.921mm(0.115in)Contact Point for 5 TPI API Rotary Shouldered Connections

PT05

Φ2.438mm(0.096in)Contact Point for 6 TPI API Rotary Shouldered Connections

PT06

Φ2.286mm(0.09in)Contact Point for 5 TPI Buttress Casing

PT07

Φ1.829mm(0.072in)Contact Point for 8 TPI API Tubing and Casing

PT08

Φ1.448mm(0.057in)Contact Point for 10 TPI API Tubing and Line Pipe

PT09

Φ1.27mm(0.05in)Contact Point for 11.5 TPI API Line Pipe


Model

Description

Application

DMG01

30°cone, tip R0.1mm, screwed shank

Pit Depth Gages

DMG02

30°cone, tip R0.1mm, screwed shank

Pit Depth Gages



Model

Description

Application

PH05I

50°Cone Contact Point with R0.1mm

8TPI & 10TPI Round Threads

PH06I

50°Cone Contact Point with R0.05mm

API Line Pipe

PH05E

50°Cone Contact Point with R0.1mm

8TPI & 10TPI Round Threads

PH06E

50°Cone Contact Point with R0.05mm

API Line Pipe

*Both screwed and straight shanks Contact Points are available. Customer should specify the shank type.
If screwed shanks are required, customer shall specify metric or imperial screw




Model

Description

PH01I

Φ1.829mm(0.072in)Contact Point for RSC Thread Forms V-038R & V-055

PH02I

Φ1.118mm (0.044in)Contact Point Rotary Shouldered Connection V-050 and V-076 thread forms

PH03I

Φ0.864mm (0.034in)Contact Point Rotary Shouldered Connection V-040 thread forms

PH04I

Φ1.829mm (0.072in)Contact Point for Buttress Threads

PH01E

Φ1.829mm (0.072in)Contact Point for RSC Thread Forms V-038R & V-055

PH02E

Φ1.118mm (0.044in)Contact Point Rotary Shouldered Connection V-050 and V-076 thread forms

PH03E

Φ0.864mm(0.034in) Contact Point Rotary Shouldered Connection V-040 thread forms

PH04E

Φ1.829mm(0.072in) Contact Point for Buttress Threads



Applicable types

Description

Pivot Shoe

Int./Ext.Pivot Shoe,0.625"long,0.228*Width,

Int./Ext.Pivot  Shoe,0.625~long,0.433°Width,

Int./Ext.Pivot Shoe,1 long,0.433°Width,

Roller contact

Roller diameter 11mm

thread Roll contact

Diame ter 18mπ

Truncated contact

Top Truncated

Extended contact

Customised per customer's requirement


Model

A

B

PA-45-1

4-48UNF

4-48UNF

PA-45-2

4-48UNF

M2.5

PA-45-3

M2.5

M2.5

PA-45-4

M2.5

4-48UNF

ISG033-02

M2.5

M2.5

×
