Thread Height Gage Standards

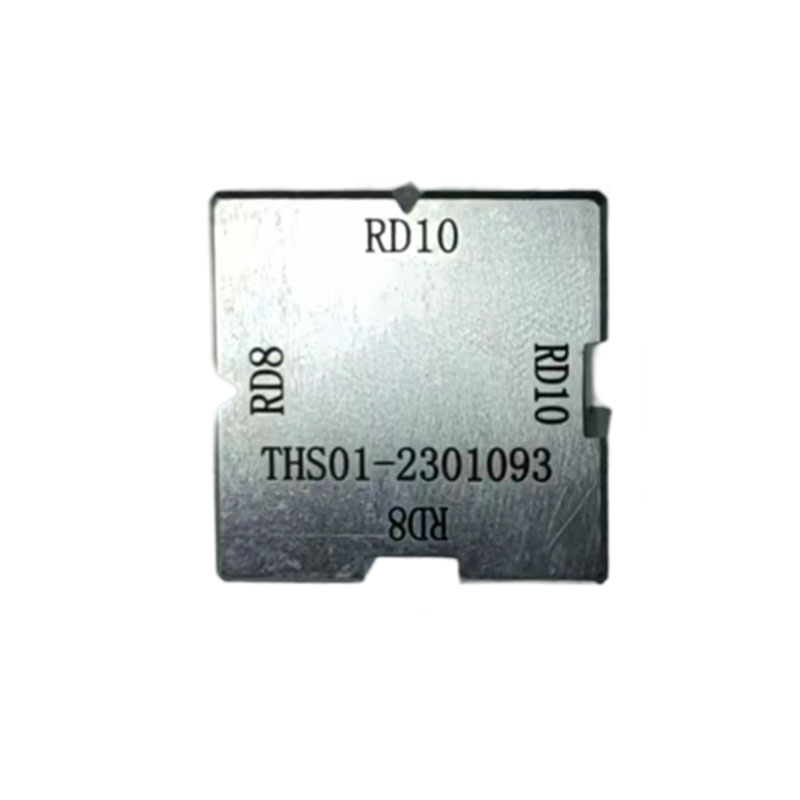

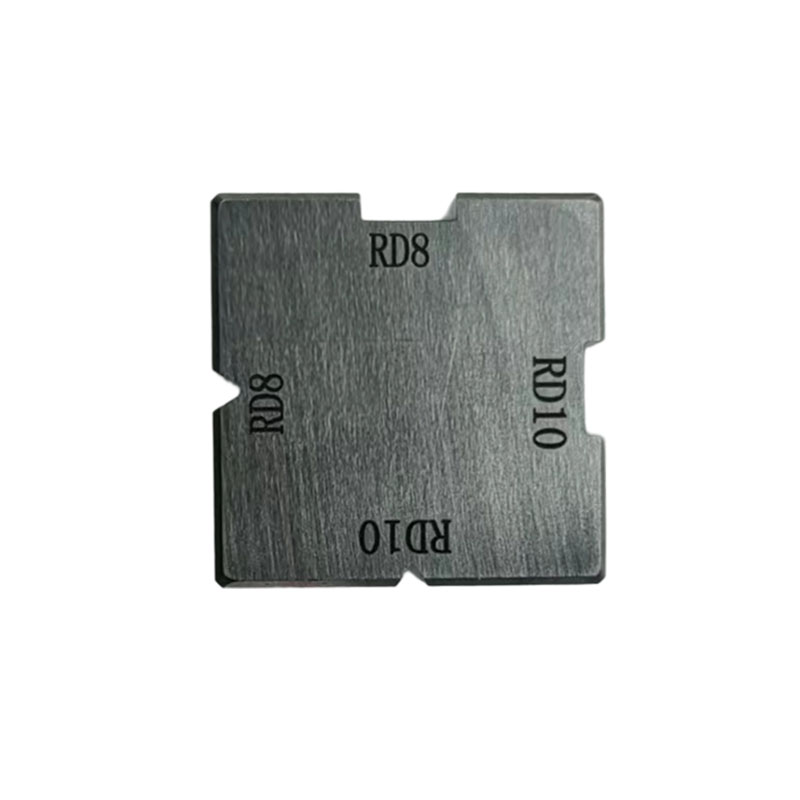

THS011

Model

Application

THS011

3/4"TPF 8TPI & 10TPI Round Threads

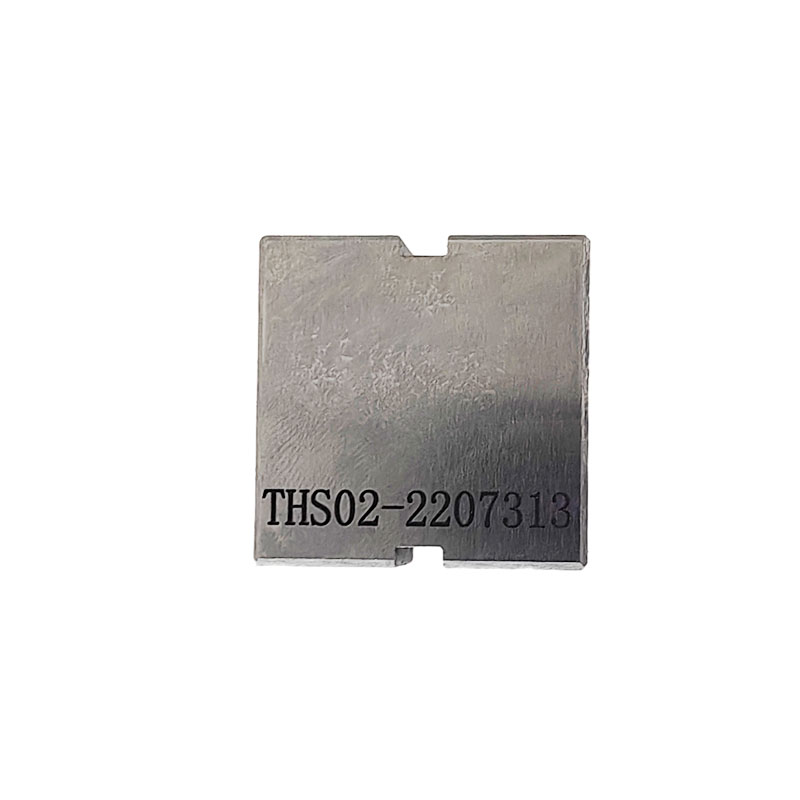

THS012 THS013


Model

Application

THS012

3/4"TPF 8TPI LP

THS013

3/4"TPF 11.5TPI LP

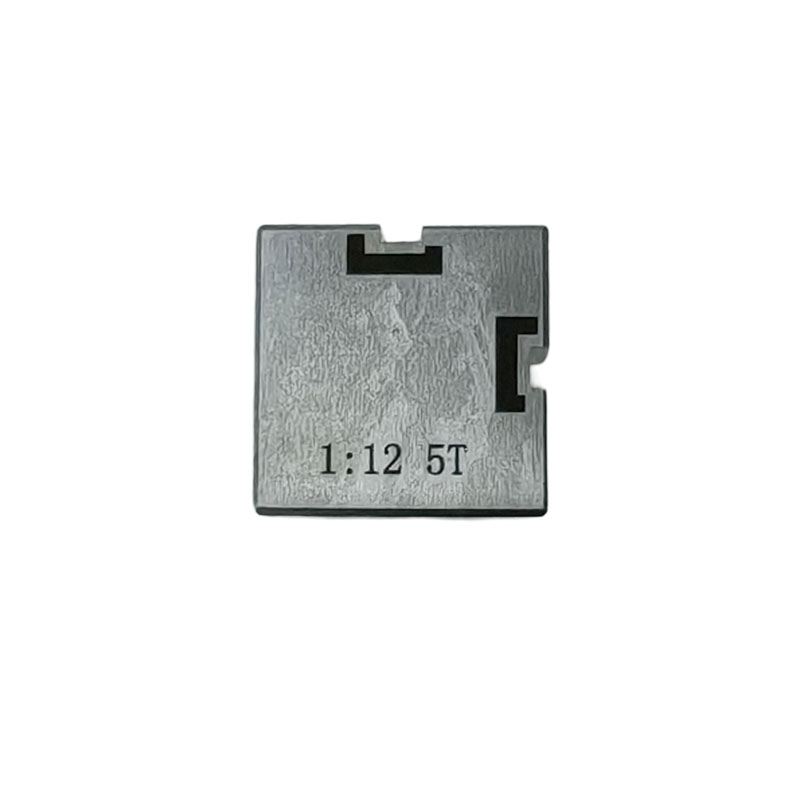

THS021

Model

Application

THS021

3/4"TPF 5TPI BCSG

THS022

Model

 Application

THS022

1"TPF 5TPI BCSG

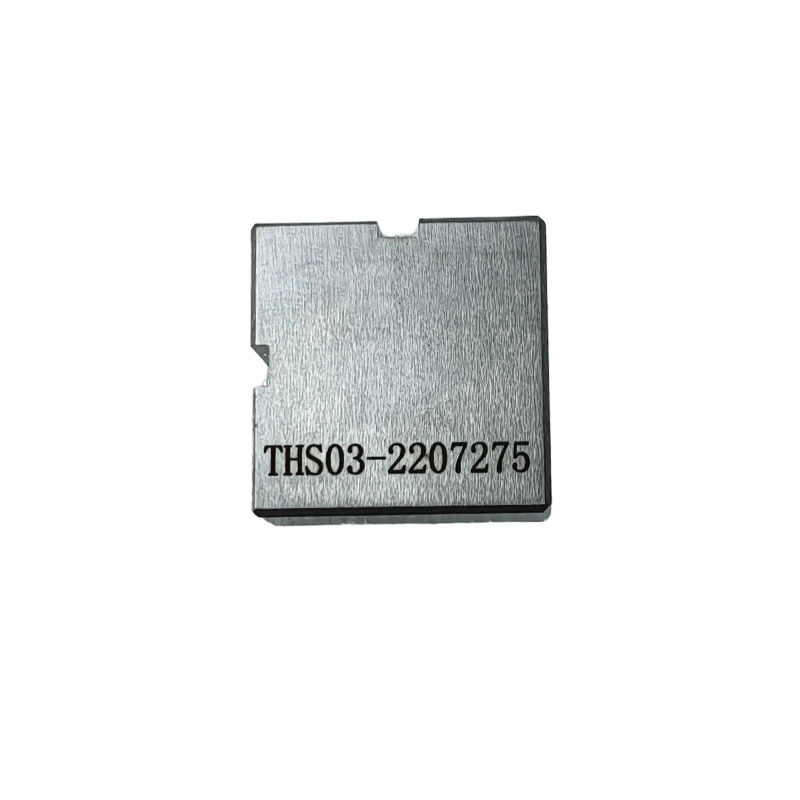

THS031/THS032/THS041/THS051/THS052/THS061/THS071/THS081/THS091/THS092/THS093

Model

Application

THS031

V-038R,2" TPF Rotary Shouldered Connections,4 TPI

THS032

V-038R,3" TPF Rotary Shouldered Connections,4 TPI

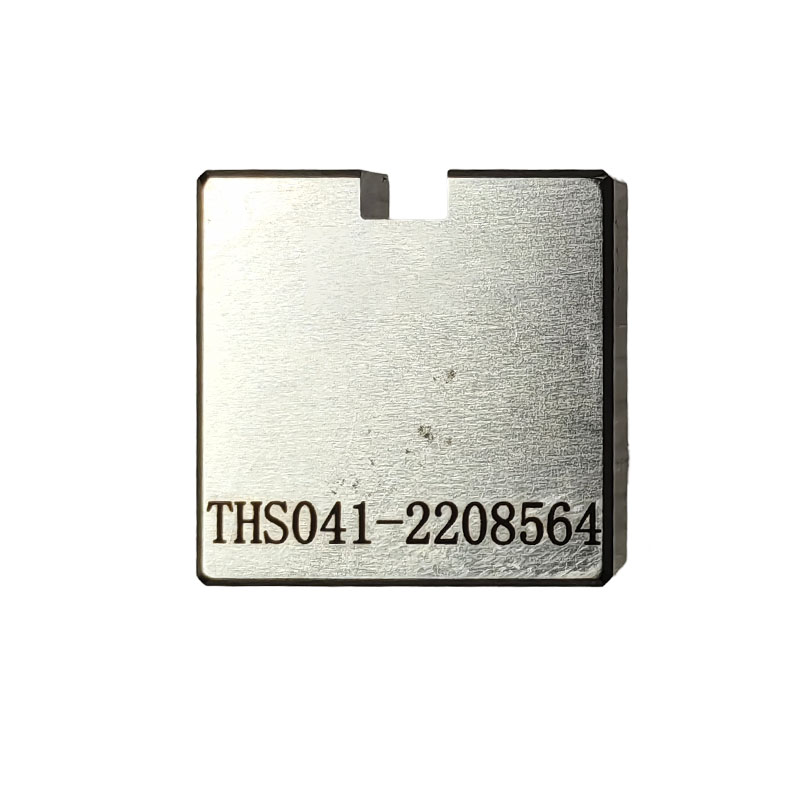

THS041

V-040,3" TPF Rotary Shouldered Connections,5 TPI

THS051

V-050 2" TPF Rotary Shouldered Connections,4 TPI

THS052

V-050,3" TPF Rotary Shouldered Connections,4 TPI

THS061

V-055,1.5" TPF Rotary Shouldered Connections,6 TPI

THS071

V-065 2" TPF Rotary Shouldered Connections,4 TPI

THS081

V-076,1.5" TPF Rotary Shouldered Connections,4 TPI

THS091

90-V-050 2" TPF Rotary Shouldered Connections,3.5 TPI

THS092

90-V-050,3" TPF Rotary Shouldered Connections,3.5 TPI

THS093

90-V-084,1 1/4" TPF Rotary Shouldered Connections,3 TPI

×
