External Thread Height Gages

Consult

Features Technical Indicators Overall Dimension

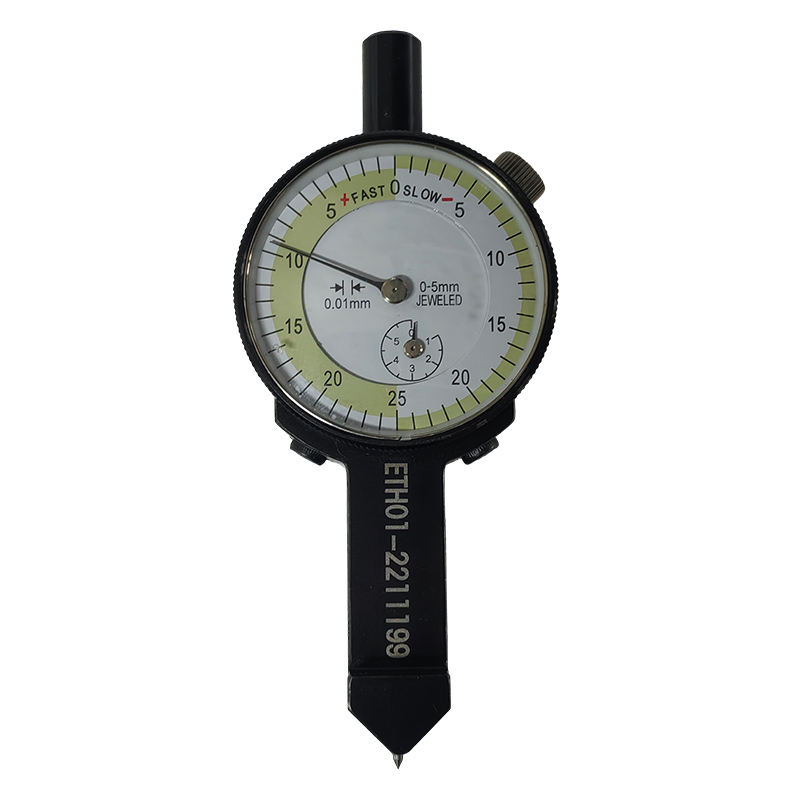

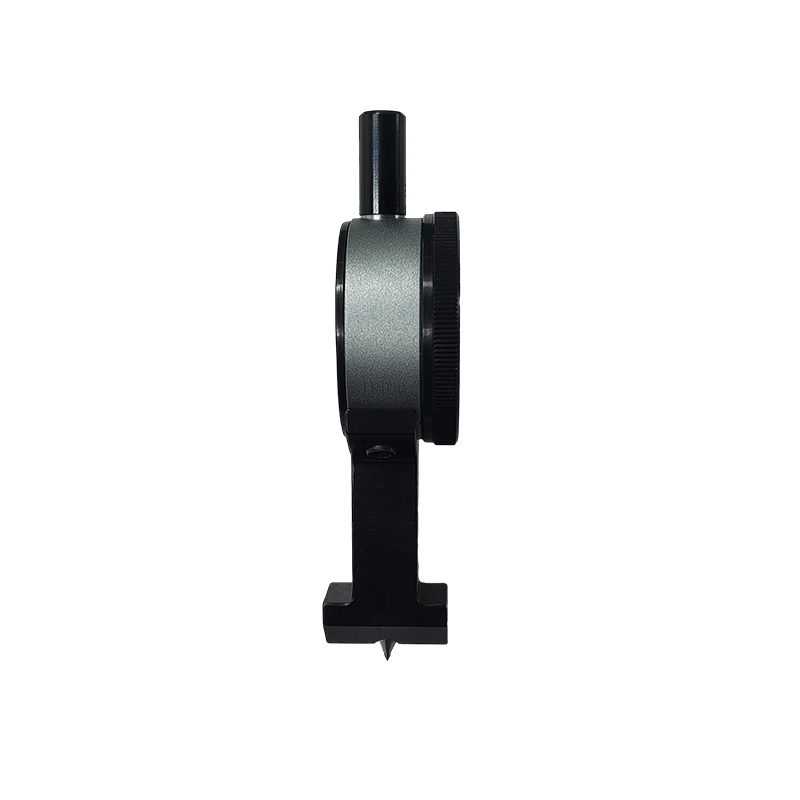

ETH011M ETH012M

Model	Contact Point	Application	Indicator Res.
ETH011M	50°Cone with R0.10 Contact Point	8-Round & 10-Round External Thread , and 5½" & Larger Internal Thread	0-5mm×0.01mm
ETH012M	50°Cone with R0.05 Contact Point	LP External Thread ,and 5½" & Larger Internal Thread	0-5mm×0.01mm

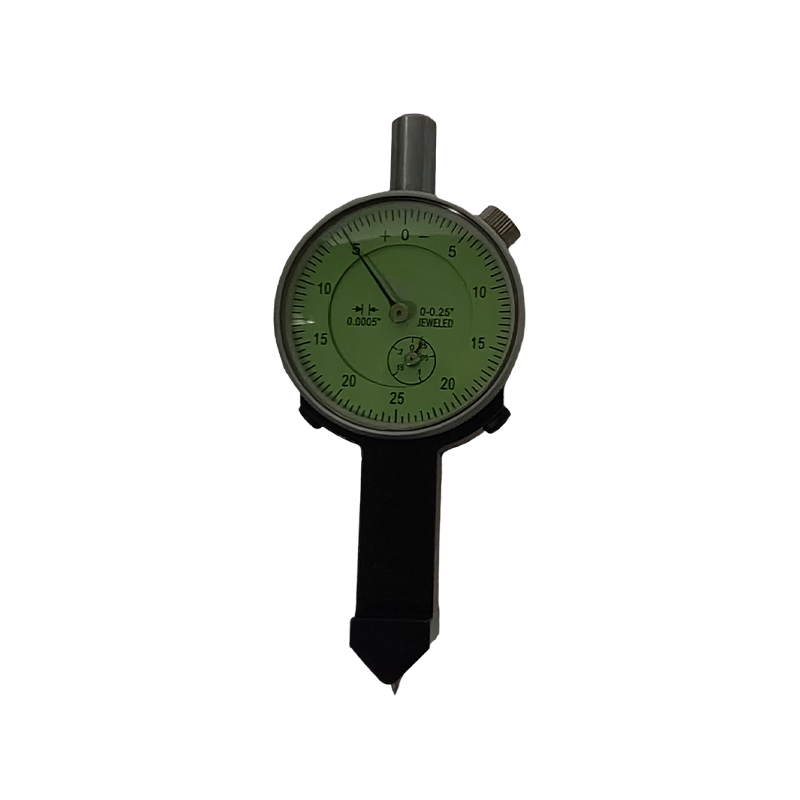

ETH011Y ETH012Y

Model

Contact Point

Application

Indicator Res.

ETH011Y

50°Cone with R0.10 Contact Point

8-Round & 10-Round External Thread , and 5½" & Larger Internal Thread

0-0.25"×0.0005″

ETH012Y

50°Cone with R0.05 Contact Point

LP External Thread ,and 5½" & Larger Internal Thread

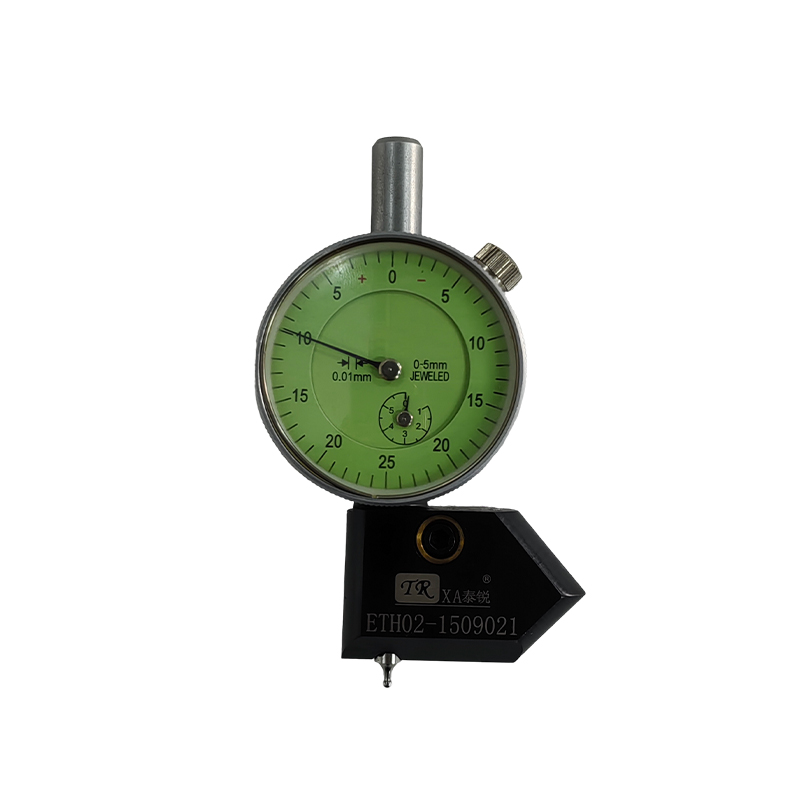

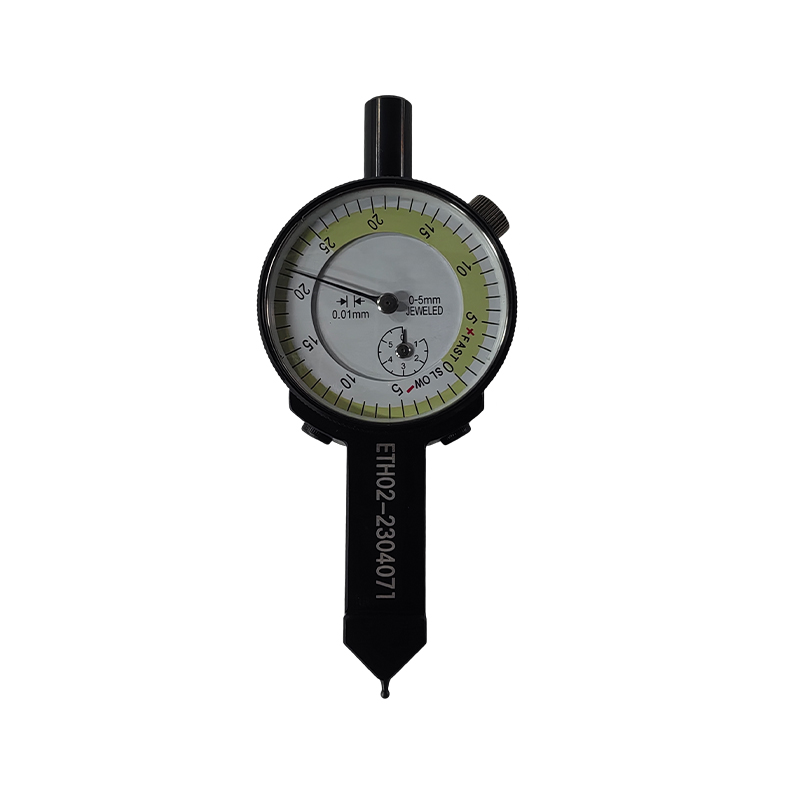

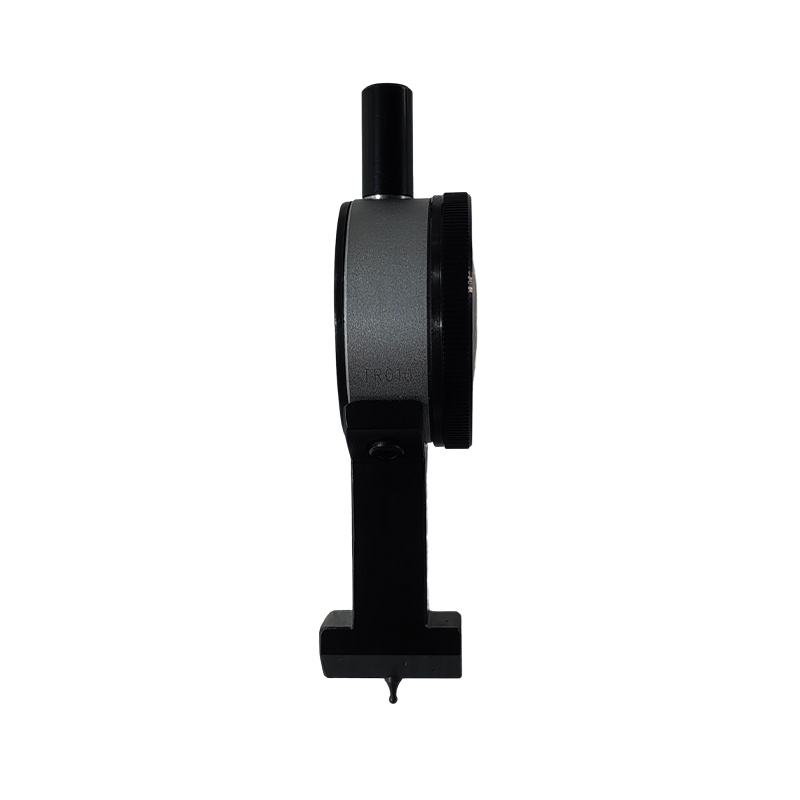

ETH021M( 0-5mm×0.01mm)

Model	Contact Point	Application	Indicator Res.
ETH013M	Ø1.575mm（0.062in）	13⅜" & Smaller Buttress External Thread,5½"-13⅜" Internal Thread	0-5mmX0.01mm
ETH021M	Ø1.829mm（0.072in）	13⅜" & Smaller Buttress,Rotary Shouldered Connection Thread Forms V-038R & V-055 External Thread,5½" & Larger Internal Thread
ETH022M	Ø1.12mm（0.044in）	Rotary Shouldered Connection Thread Forms V-050 & V-076 External Thread,5½" & Larger Internal Thread
ETH023M	Ø0.86mm（0.034in）	Rotary Shouldered Connection Thread Forms V-040 External Thread,5½" & Larger Internal Thread
ETH024M	Ø1.829 mm（0.072in）	16" & Larger Buttress, 1"TPF

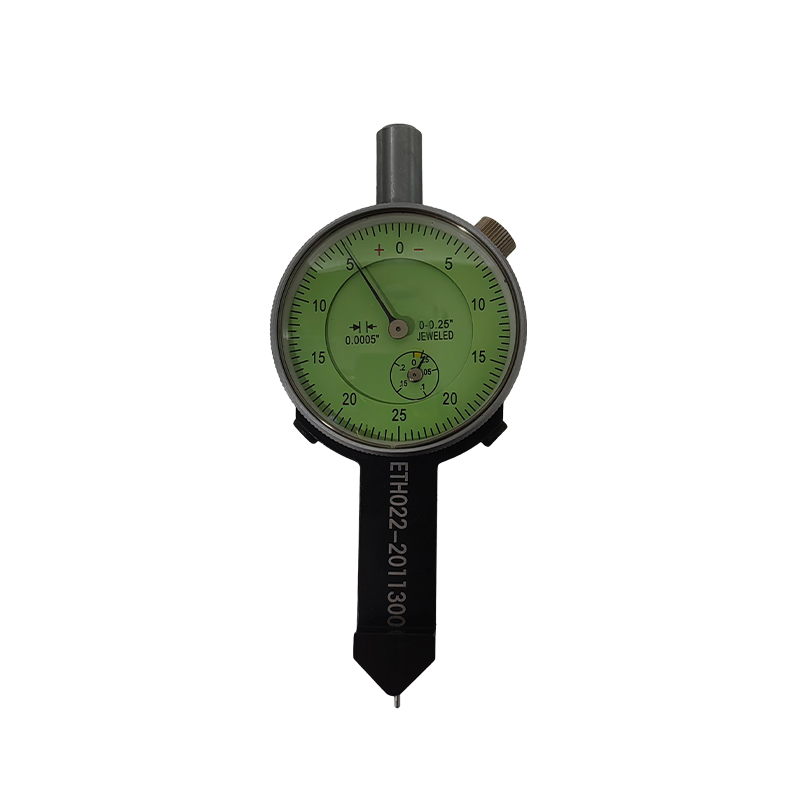

ETH021Y(0-0.25×0.0005″)

Model	Contact Point	Application	Indicator Res.
ETH013Y	Ø1.575mm（0.062in）	13⅜" & Smaller Buttress External Thread, 5½"-13⅜" Internal Thread	0-0.25"×0.0005″
ETH021Y	Ø1.829mm（0.072in）	13⅜" & Smaller Buttress, Rotary Shouldered Connection Thread Forms V-038R & V-055 External Thread, 5½" & Larger Internal Thread
ETH022Y	Ø1.12mm（0.044in）	Rotary Shouldered Connection Thread Forms V-050 & V-076 External Thread, 5½"& Larger Internal Thread
ETH023Y	Ø0.86mm（0.034in）	Rotary Shouldered Connection Thread FormsV-040 External Thread, 5½" & Larger Internal Thread
ETH024Y	Ø1.829 mm（0.072in）	16" & Larger Buttress, 1" TPF

ETH031M
8-Round & 10-Round External Thread Height,Larger 5½"Internal Thread

Model	Contact Point	Application	Indicator Res.
ETH031M	50°Cone with R0.1 Contact Point	8-Roud & 10-Roud External Thread , 4½" & Larger Internal Thread	0-5mm×0.01mm
ETH032M	50°Cone with R0.05 Contact Point	LP External Thread , 4½" & Larger Internal Thread	0-5mm×0.01mm

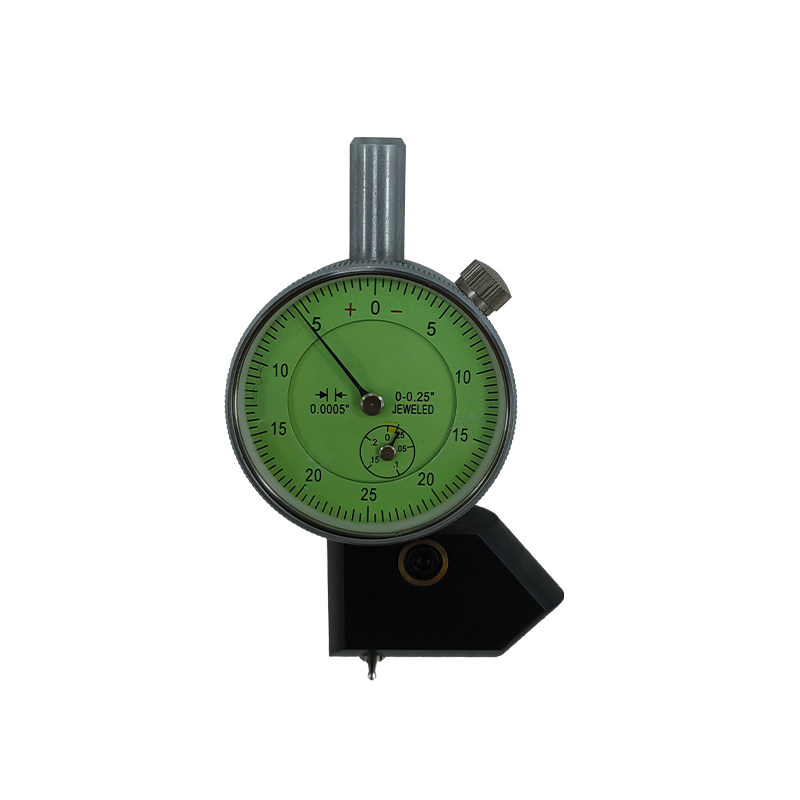

ETH031Y
8-Round & 10-Round External Thread Height,Larger 5½"Internal Thread

Model

Contact Point

Application

Indicator Res.

ETH031Y

50°Cone with R0.1 Contact Point

8-Roud & 10-Roud External Thread ,
4½" & Larger Internal Thread

0-0.25"×0.0005"

ETH032Y

50°Cone with R0.05 Contact Point

LP External Thread Height,
4½" & Larger Internal Thread

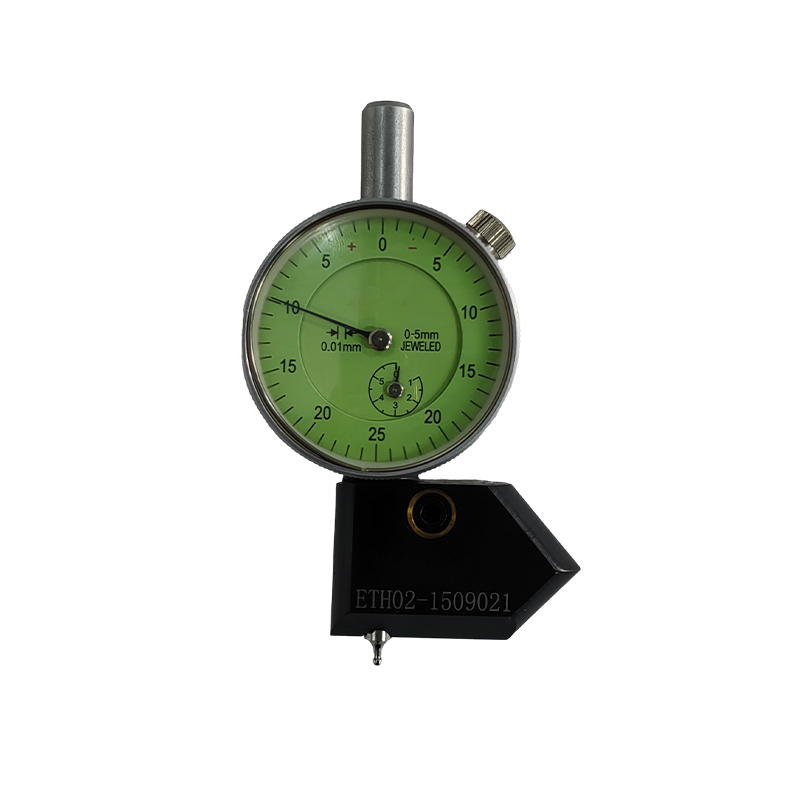

ETH041M

Model	Contact Point	Application	Indicator Res.
ETH033M	Ø1.575mm（0.062in）	13⅜" & Smaller Buttress External Thread, 4½"-13⅜" Internal Thread	0-5mm×0.01mm
ETH041M	Ø1.829mm（0.072in）	Rotary ShoulderedConnection Thread Forms V-038R & V-055 External Thread, 4½" & Larger Internal Thread
ETH042M	Ø1.12mm（0.044in）	Rotary Shouldered Connection Thread Forms V-050 & V-076 External Thread, 4½" & Larger Internal Thread
ETH043M	Ø0.86mm（0.034in）	Rotary Shouldered Connection Thread Forms V-040 External Thread, 4½" & Larger Internal Thread
ETH044M	Ø1.829 mm（0.072in）	16" & Larger Buttress, 1" TPF

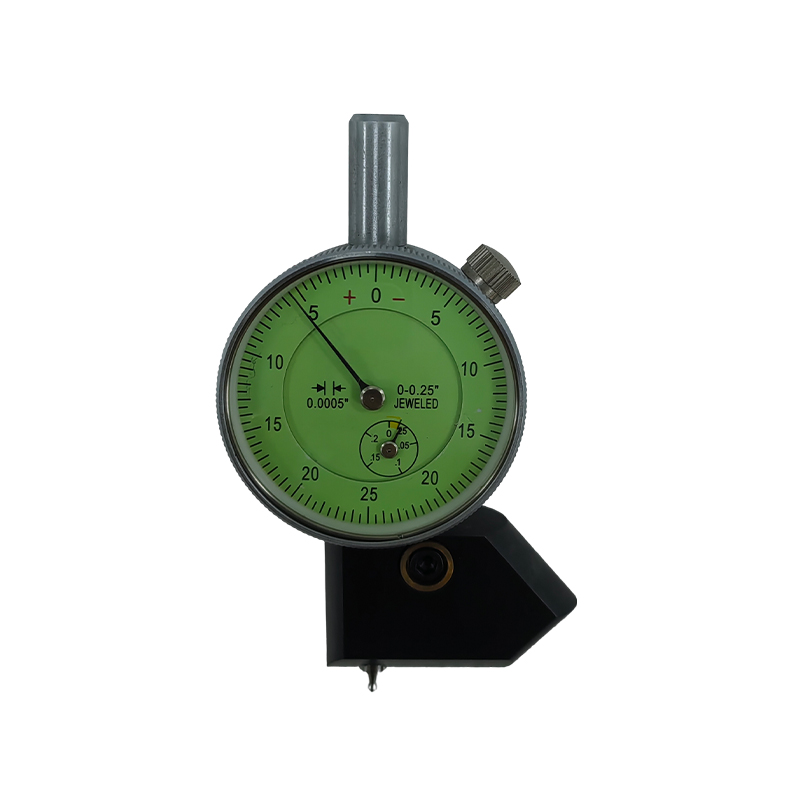

ETH041Y

Model	Contact Point	Application	Indicator Res.
ETH033Y	Ø1.575mm（0.062in）	13⅜" & Smaller Buttress External Thread, 4½"- 13⅜" Internal Thread	0-0.25"×0.0005″
ETH041Y	Ø1.829mm（0.072in）	Rotary Shouldered Connection Thread Forms V-038R & V-055 External Thread, 4½" & Larger Internal Thread
ETH042Y	Ø1.12mm（0.044in）	Rotary Shouldered Connection Thread Forms V-050 & V-076 External Thread, 4½" & Larger Internal Thread
ETH043Y	Ø0.86mm（0.034in）	Rotary Shouldered Connection Thread Forms V-040 External Thread, 4½" & Larger Internal Thread
ETH044Y	Ø1.829 mm（0.072in）	16" & Larger Buttress, 1" TPF
