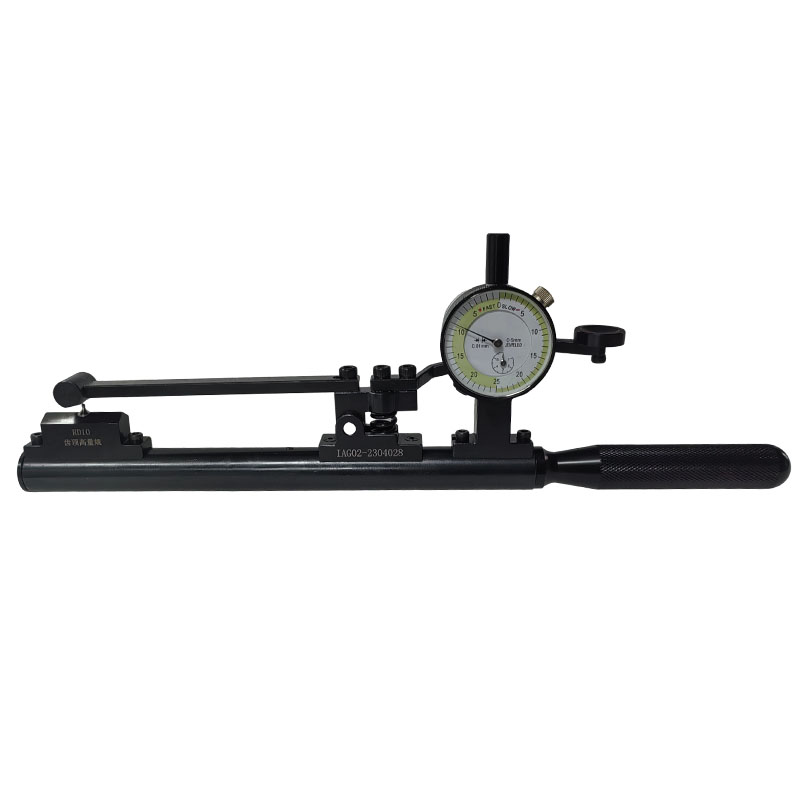

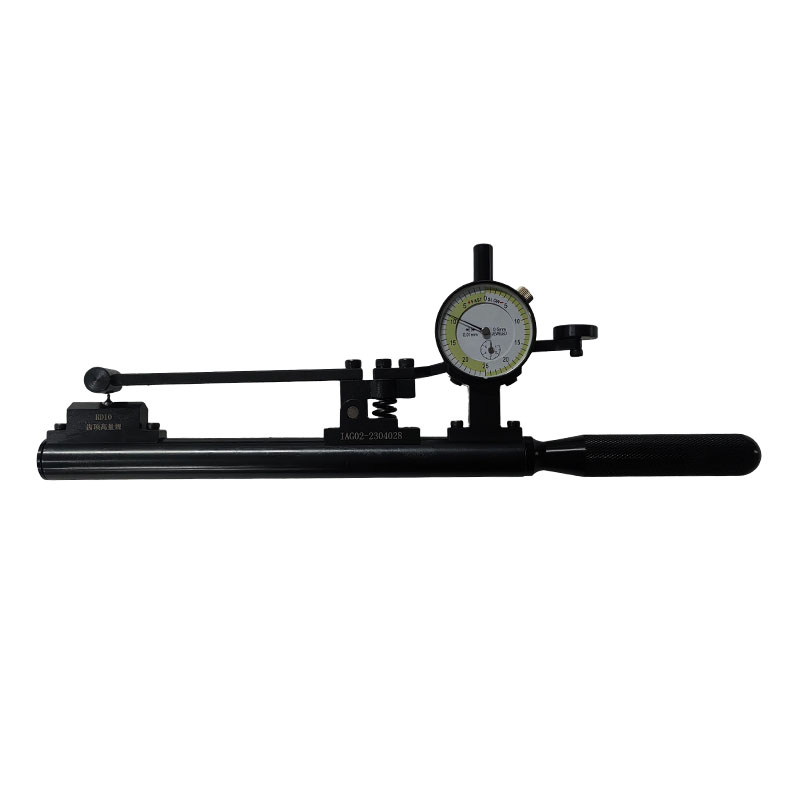

Internal Thread Addendum Gages


IAG011M/IAG012M
(0-5mm×0.01mm)

Model

Contact Point

Application

Indicator Res.

IAG011M

Ø1.83mm0.072in

¾ TPF 8-Round≤4½"

( 0-5mm×0.01mm)

IAG012M

Ø1.45mm0.057in

¾ TPF 10-Round


IAG011Y/IAG012Y
(0-0.25"×0.0005″)

Model

Contact Point

Application

Indicator Res.

IAG011Y

Ø1.83mm0.072in

¾ TPF 8-Round≤4½"

0-0.25"×0.0005″

IAG012Y

Ø1.45mm0.057in

¾ TPF 10-Round

×
