Tapered Thread Profile Gages


TPG01/TPG02/TPG051/TPG52/TPG061/TPG71/TPG72/TPG81/TPG82/TPG83/TPG84/TPG85

Model

Description

TPG01

3/4"TPF,8 TPI,API 8-Round Casing, Tubing & Drill Pipe

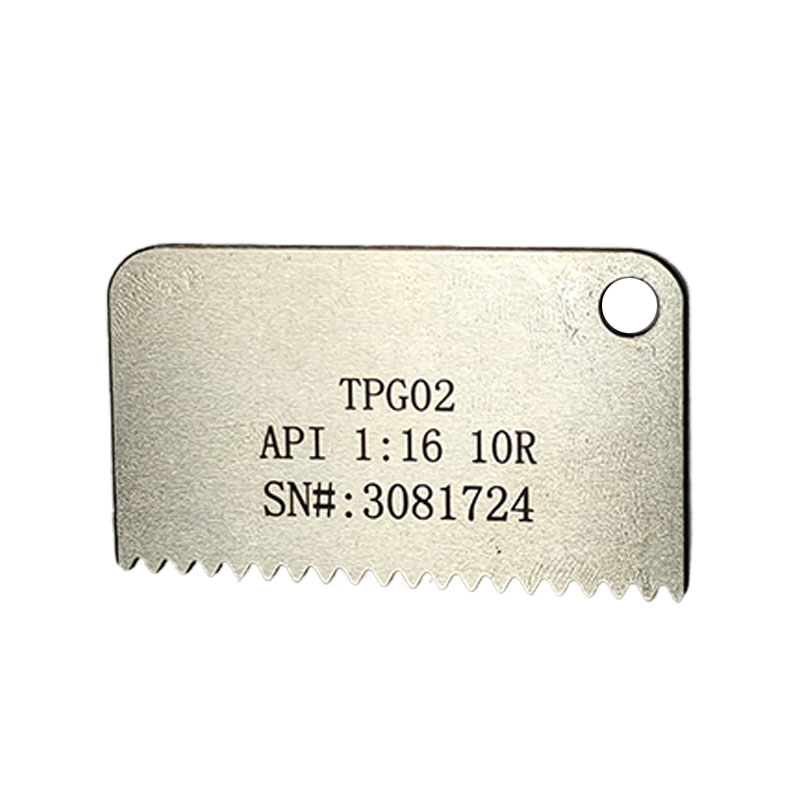

TPG02

3/4"TPF,10 TPI,API 10-Round Tubing

TPG051

2"TPF,4 TPI,V-038R, API Numbered Connections #23-#50

TPG052

3"TPF,4 TPI,V-038R, API Numbered Connections #56 - #77

TPG061

3"TPF,5 TPI,V-040, 2⅜" - 4½" API Reg, 2⅞"(3½", 4½")API Full Hole

TPG071

2"TPF,4 TPI,V-050,6⅝" API Reg,5½" & 6⅝" API Full Hole

TPG072

3"TPF,4 TPI,V-050,5½"(7⅝", 8⅝") API Reg

TPG081

1.5"TPF,6 TPI,V-055,API Numbered Connections #10, #12, #13, #16

TPG082

2"TPF,4 TPI,V-076,2⅜" - 3½" P.A.C. Connections,2⅜" - 4½" American Open Hole

TPG083

2"TPF,3.5 TPI,90-V-050,3½"- 6⅝" Hughes H-90

TPG084

3"TPF,3.5 TPI,90-V-050,7" - 8⅝" Hughes H-90

TPG085

1 1/4" TPF ,3 TPI,90-V-084,2⅜" - 3½" Hughes Slimline H-90

TPG03B/TPG03P/TPG04B/TPG04P


Model

Description

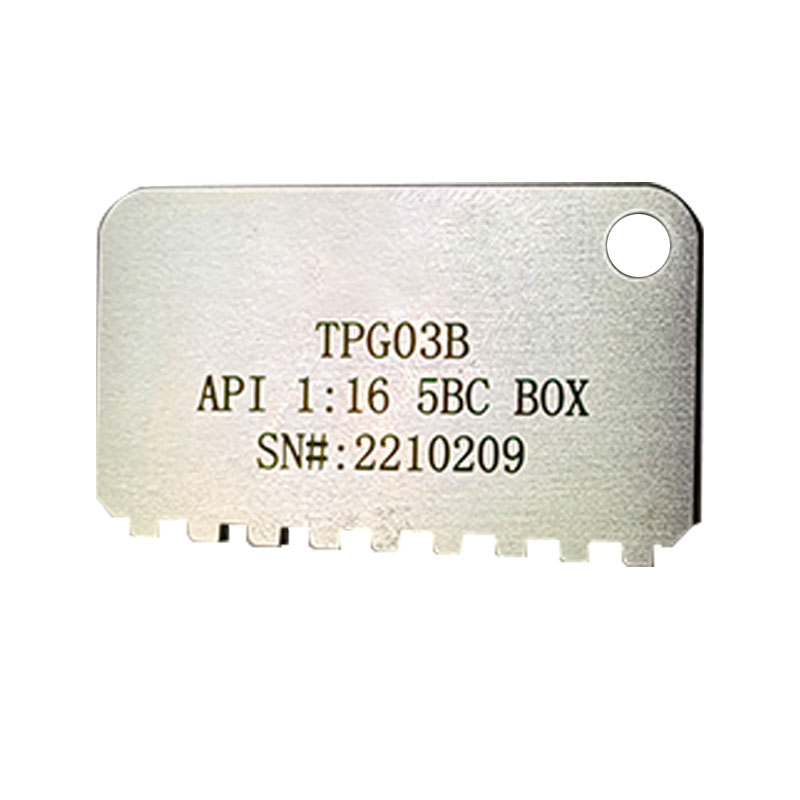

TPG03B

3/4"TPF,5 TPI,API Buttress Casing, Internal, 4½" - 13⅜"

TPG03P

3/4"TPF,5 TPI,API Buttress Casing, External, 4½" - 13⅜"

TPG04B

1"TPF,5 TPI,API Buttress Casing, Internal, 16" - 20"

TPG04P

1"TPF,5 TPI,API Buttress Casing, External, 16" - 20"

TPG01-V/TPG02-V/TPG03B-V/TPG03P-V/TPG04B-V/TPG04P-V/TPG051-V/TPG052-V/TPG061-V/TPG071-V/TPG072-V/TPG081-V/TPG082-V/TPG083-V/TPG084-V/TPG085-V

Model

Description

TPG01-V

3/4"TPF,8 TPI,API 8-Round Casing, Tubing & Drill Pipe

TPG02-V

3/4"TPF,10 TPI,API 10-Round Tubing

TPG03B-V

3/4"TPF,5 TPI,API Buttress Casing, Internal, 4½" - 13⅜"

TPG03P-V

3/4"TPF,5 TPI,API Buttress Casing, External, 4½" - 13⅜"

TPG04B-V

1"TPF,5 TPI,API Buttress Casing, Internal, 16" - 20"

TPG04P-V

1"TPF,5 TPI,API Buttress Casing, External, 16" - 20"

TPG051-V

2"TPF,4 TPI,V-038R, API Numbered Connections #23-#50

TPG052-V

3"TPF,4 TPI,V-038R, API Numbered Connections #56 - #77

TPG061-V

3"TPF,5 TPI,V-040, 2⅜" - 4½" API Reg, 2⅞"(3½", 4½")API Full Hole

TPG071-V

2"TPF,4 TPI,V-050,6⅝" API Reg,5½" & 6⅝" API Full Hole

TPG072-V

3"TPF,4 TPI,V-050,5½"(7⅝", 8⅝") API Reg

TPG081-V

1.5"TPF,6 TPI,V-055,API Numbered Connections #10, #12, #13, #16

TPG082-V

2"TPF,4 TPI,V-076,2⅜" - 3½" P.A.C. Connections,2⅜" - 4½" American Open Hole

TPG083-V

2"TPF,3.5 TPI,90-V-050,3½"- 6⅝" Hughes H-90

TPG084-V

3"TPF,3.5 TPI,90-V-050,7" - 8⅝" Hughes H-90

TPG085-V

1 1/4" TPF ,3 TPI,90-V-084,2⅜" - 3½" Hughes Slimline H-90

TPG01-L/TPG02-L/TPG03B-L/TPG03P-L/TPG04B-L/TPG04P-L/TPG051-L/TPG052-L/TPG061-L/TPG071-L/TPG072-L/TPG081-L/TPG082-L/TPG083-L/TPG084-L/TPG085-L

Model

Description

TPG01-L

3/4"TPF,8 TPI,API 8-Round Casing, Tubing & Drill Pipe

TPG02-L

3/4"TPF,10 TPI,API 10-Round Tubing

TPG03B-L

3/4"TPF,5 TPI,API Buttress Casing, Internal, 4½" - 13⅜"

TPG03P-L

3/4"TPF,5 TPI,API Buttress Casing, External, 4½" - 13⅜"

TPG04B-L

1"TPF,5 TPI,API Buttress Casing, Internal, 16" - 20"

TPG04P-L

1"TPF,5 TPI,API Buttress Casing, External, 16" - 20"

TPG051-L

2"TPF,4 TPI,V-038R, API Numbered Connections #23-#50

TPG052-L

3"TPF,4 TPI,V-038R, API Numbered Connections #56 - #77

TPG061-L

3"TPF,5 TPI,V-040, 2⅜" - 4½" API Reg, 2⅞"(3½", 4½")API Full Hole

TPG071-L

2"TPF,4 TPI,V-050,6⅝" API Reg,5½" & 6⅝" API Full Hole

TPG072-L

3"TPF,4 TPI,V-050,5½"(7⅝", 8⅝") API Reg

TPG081-L

1.5"TPF,6 TPI,V-055,API Numbered Connections #10, #12, #13, #16

TPG082-L

2"TPF,4 TPI,V-076,2⅜" - 3½" P.A.C. Connections,2⅜" - 4½" American Open Hole

TPG083-L

2"TPF,3.5 TPI,90-V-050,3½"- 6⅝" Hughes H-90

TPG084-L

3"TPF,3.5 TPI,90-V-050,7" - 8⅝" Hughes H-90

TPG085-L

1 1/4" TPF ,3 TPI,90-V-084,2⅜" - 3½" Hughes Slimline H-90

×
