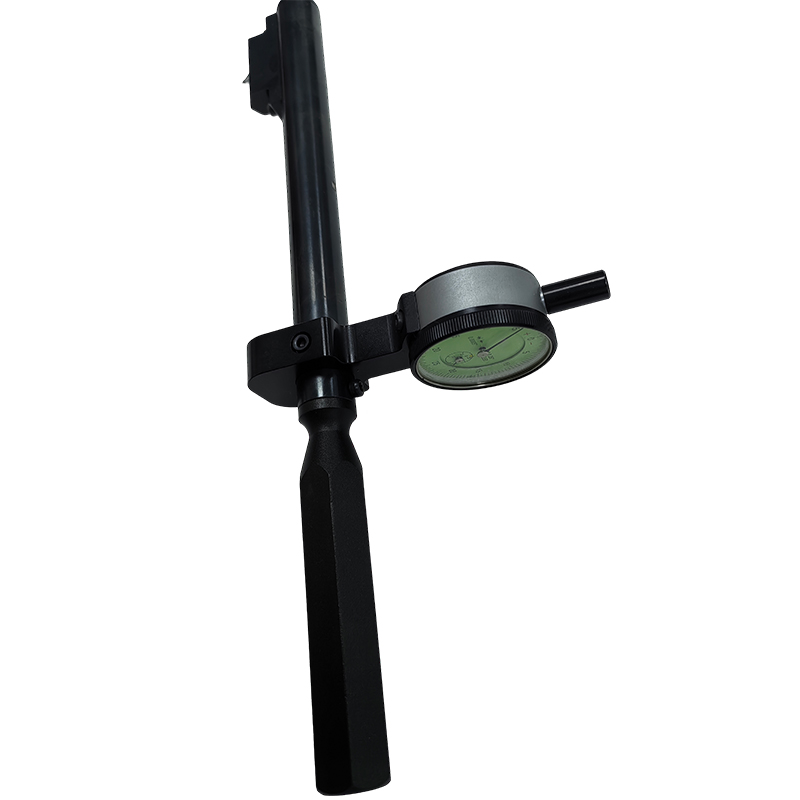

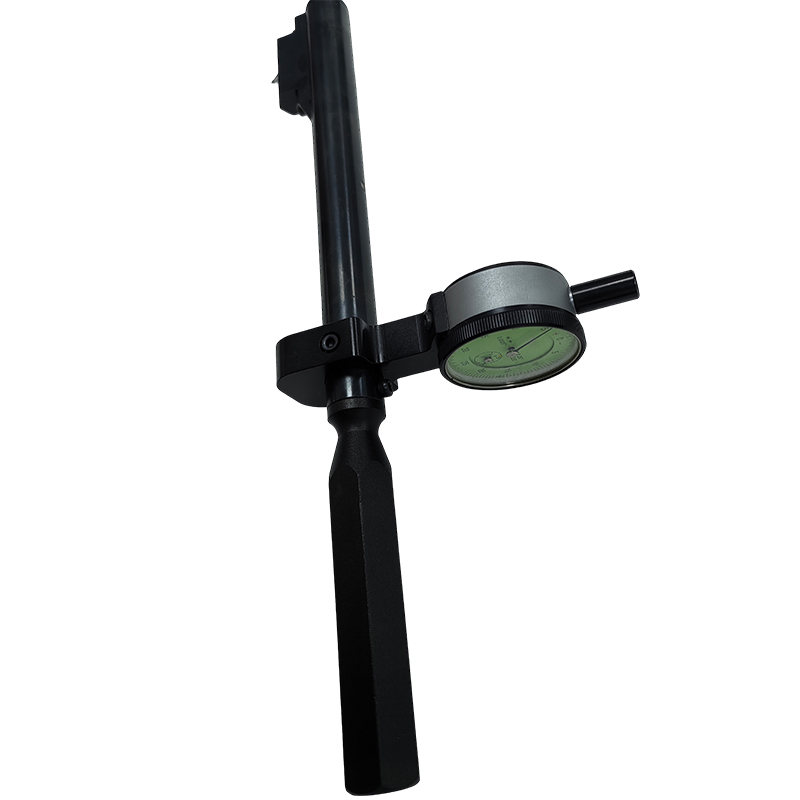

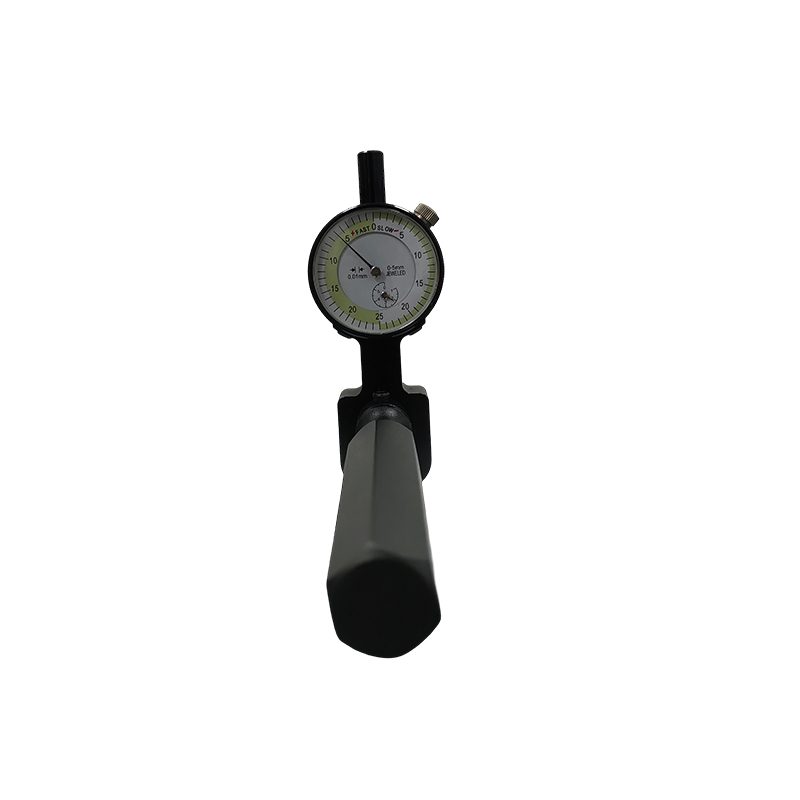

Internal Thread Height Gages

Our Services Category

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Internal Thread Height Gages

Consult

Features Technical Indicators Overall Dimension

ITH011 Y

Model	SΦD	Description	Instruction table
ITH011Y	50°tip probe, tip arcR0.1-R0.15	2 3/8"-5" Internal Thread Height	0-0.25"×0.0005″

ITH011M

Model	SΦD	Description	Instruction table
ITH011M	50°tip probe,tip arc R0.1-R0.15	2 3/8"-5" Internal Thread Height	0-5mm×0.01mm

ITH012M

Model	SΦD	Description	Instruction table
ITH012M	50° tip probe,tip arcR0.1-R0.15	2 3/8"-5" Internal Thread Height	0-5mm×0.01mm

ITH012Y

Model	SΦD	Description	Instruction table
ITH012Y	50° tip probe,tip arcR0.1-R0.15	2 3/8"-5" Internal Thread Height	0-0.25~×0.0005"

ITH021M

Model	SΦD	Description	Instruction table
ITH021M	Ø1.829	2 3/8“-5"Internal Thread Height	0-5mm×0.01mm
ITH022M	Ø1.12	2 3/8"-5"Rotary Shouldered Connection Thread Forms V-050 & V-076 Internal Thread Height
ITH023M	Ø0.86	2 3/8“-5” Rotary Shouldered Connection Thread Forms V-040 Internal Thread Height

TH021Y

Model	SΦD	Description	Instruction table
ITH021Y	Ø1.829	2 3/8“-5"Internal Thread Height	0-0.25"×0.0005″
ITH022Y	Ø1.12	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-050 & V-076 Internal Thread Height
ITH023Y	Ø0.86	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-040 Internal Thread Height

ITH024M

Model	SΦD	Description	Instruction table
ITH024M	Ø1.829	3 1/2"-5"r Buttress,Rotary Shouldered Connection Thread Forms V-038R & V-055 Internal Thread Height	0-5mm×0.01mm
ITH025M	Ø1.12	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-050 & V-076 Internal Thread Height
ITH026M	Ø0.86	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-040 Internal Thread Height

ITH024Y

Model	SΦD	Description	Instruction table
ITH024Y	Ø1.829	3 1/2"-5"r Buttress,Rotary Shouldered Connection Thread Forms V-038R & V-055 Internal Thread Height	0-0.25"×0.0005″
ITH025Y	Ø1.12	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-050 & V-076 Internal Thread Height
ITH026Y	Ø0.86	3 1/2"-5" Rotary Shouldered Connection Thread Forms V-040 Internal Thread Height

ITH013M/ITH013Y/ITH014M/ITH014Y/ITH015M/ITH015Y/ITH016M/ITH016Y/ITH017M/ITH017Y/ITH018M/ITH018Y

Model	SΦD	Description	Instruction table
ITH013M	Ø1.575 probe	4 1/2"-5 1/2" Buttress Internal Thread Height	0-5mm×0.01mm
ITH013Y			0-0.25"×0.0005″
ITH014M	Ø1.829 probe	2 3/8"-5"Rotary Shouldered Connection Thread Forms V-038R & V-055 Internal Thread Height	0-5mm×0.01mm
ITH014Y			0-0.25"×0.0005″
ITH015M	Ø1.12 probe	2 3/8"-5" Rotary Shouldered Connection Thread Forms V-050 & V-076 Internal Thread Height	0-5mm×0.01mm
ITH015Y			0-0.25"×0.0005″
ITH016M	Ø0.86 probe	2 3/8"-5" Rotary Shouldered Connection Thread Forms V-040 Internal Thread Height	0-5mm×0.01mm
ITH016Y			0-0.25"×0.0005″
ITH017M	50° tip probe, tip arc R0.1-R0.15	8-Round & 10-Round Thread Height,1"-2 3/8" Internal Thread Height	0-5mm×0.01mm
ITH017Y			0-0.25"×0.0005″
ITH018M	50° probe tip, probe tip arc R0.05-R0.07	LP Thread Height，1"-2 3/8"Internal Thread Height	0-5mm×0.01mm
ITH018Y			0-0.25"×0.0005″

For more info, please contact us. Contact Us
