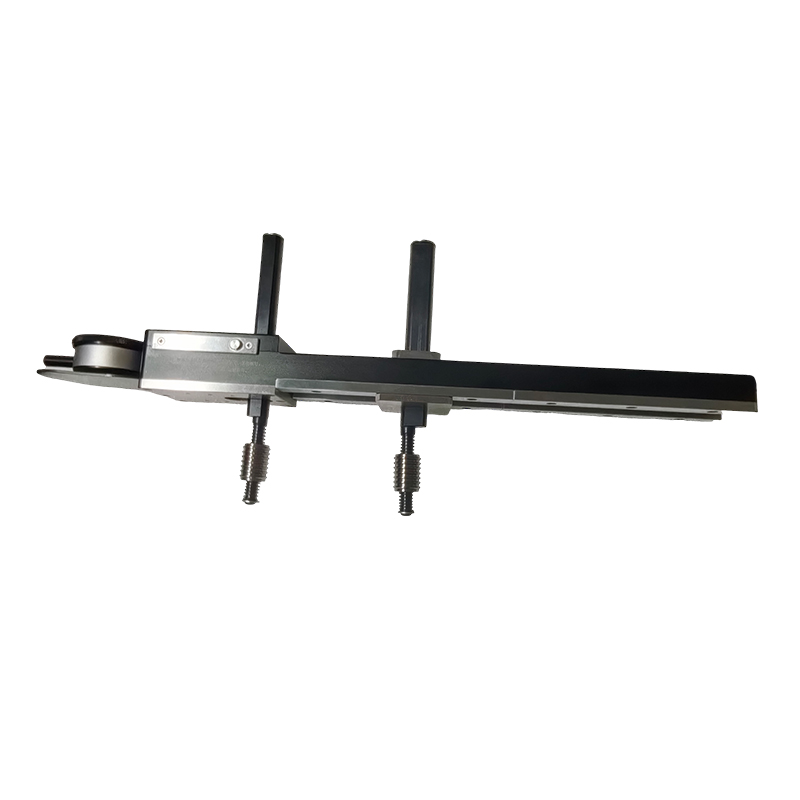

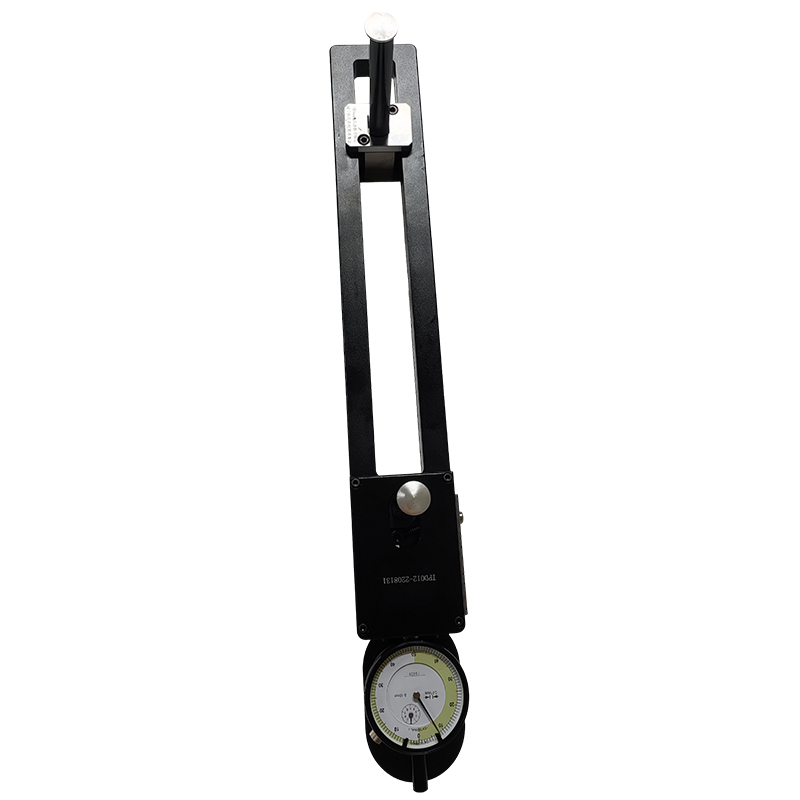

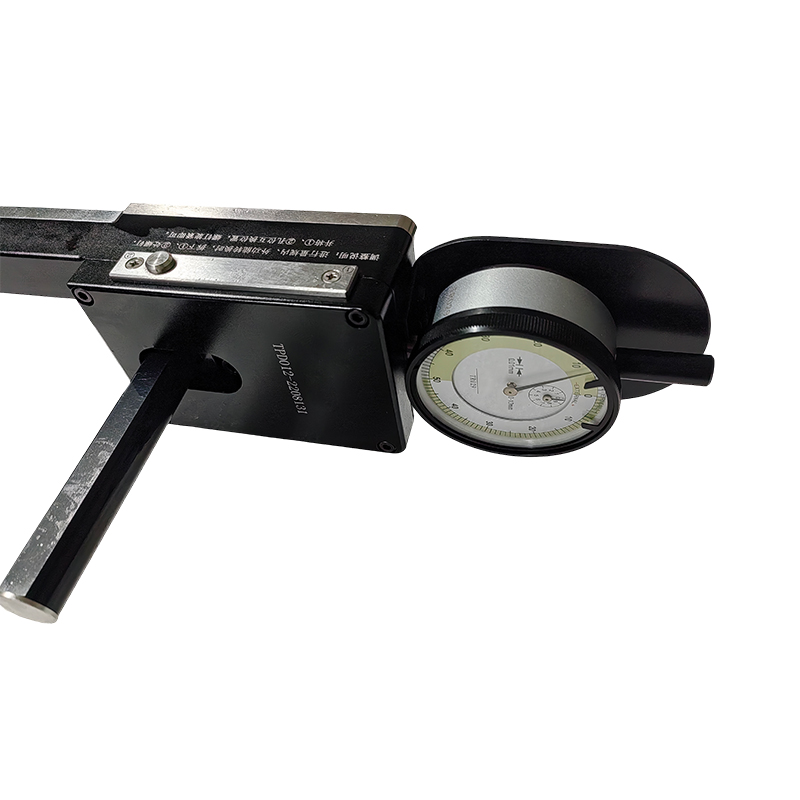

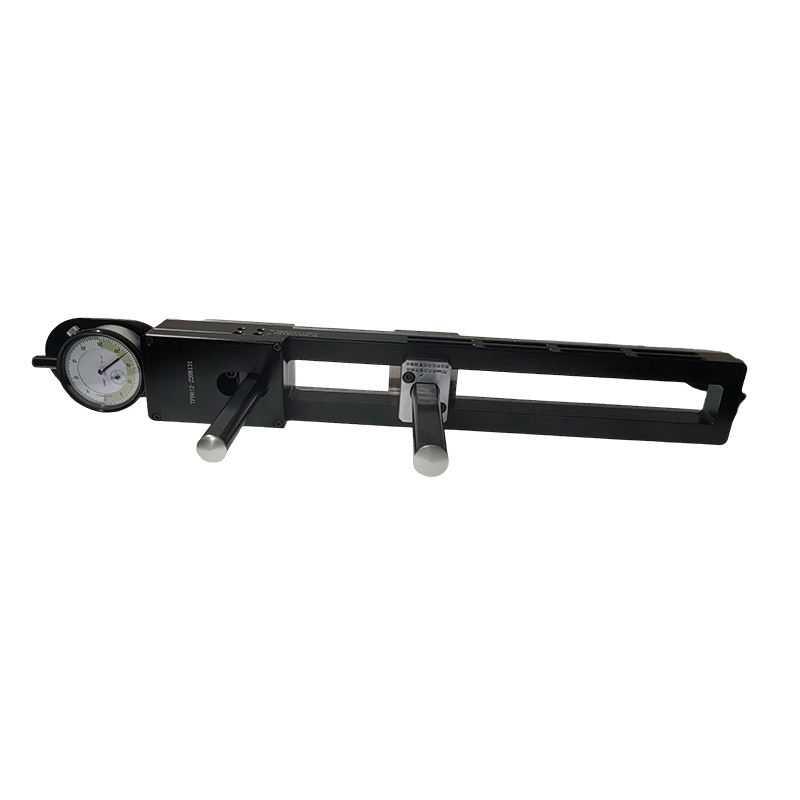

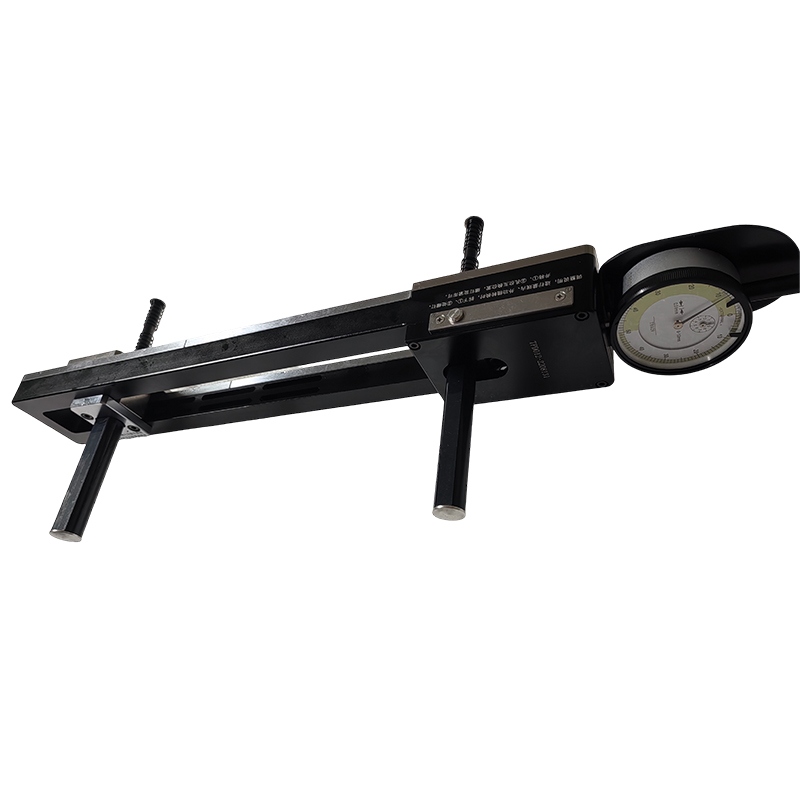

Thread Pitch Diameter Gages


TPD011M/TPD012M/TPD013M/TPD014M

Model

Application

Indicator Res.

TPD011M

2 3/8"-5 1/2"

0-10mm×0.01mm

TPD012M

  2 3/8"-9 5/8"

TPD013M

2 3/8"-13 3/8"

TPD014M

  2 3/8"-20"

TPD011Y/TPD012Y/TPD013Y/TPD014Y

Model

Application

Indicator Res.

TPD011Y

2 3/8"-5 1/2"

0-0.5"×0.0005"

TPD012Y

  2 3/8"-9 5/8"

TPD013Y

2 3/8"-13 3/8"

TPD014Y

  2 3/8"-20"

×
