External Seal Diameter Gages

Consult

Features Technical Indicators Overall Dimension

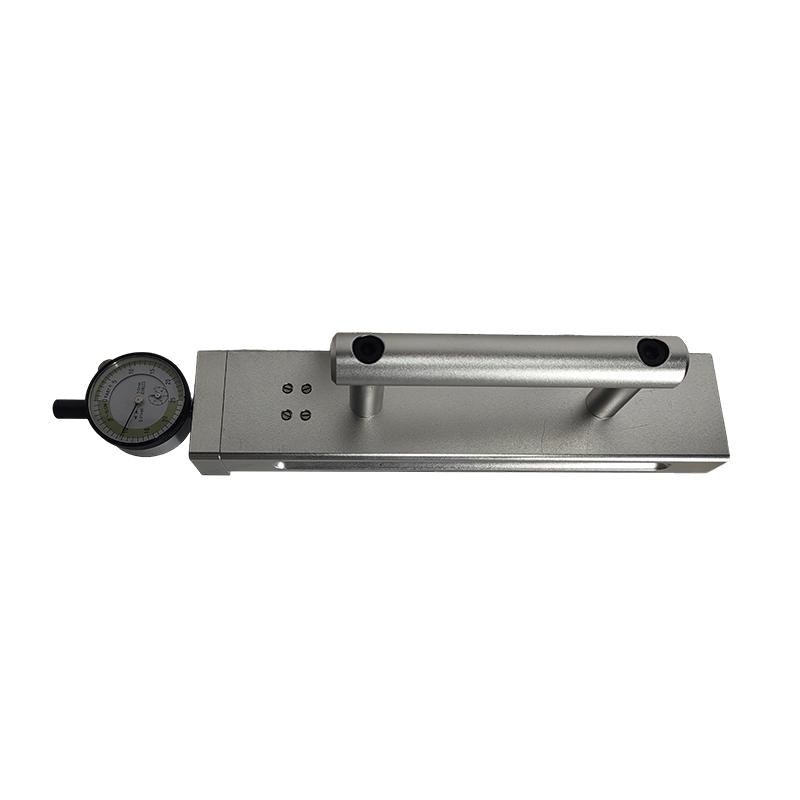

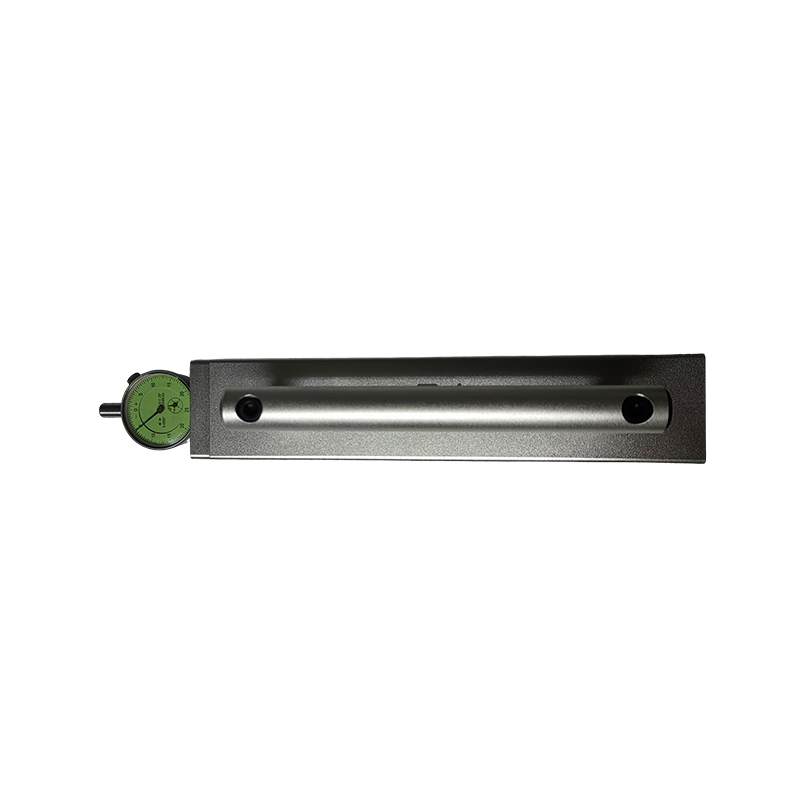

ESG011M/ ESG012M/ESG013M/ESG014M

Model	Application	Indicator Res.
ESG011M	2⅜"-5½"	0-5mm×0.01mm
ESG012M	2⅜"-7"
ESG013M	2⅜"-9⅝"
ESG014M	2⅜"-13⅜"

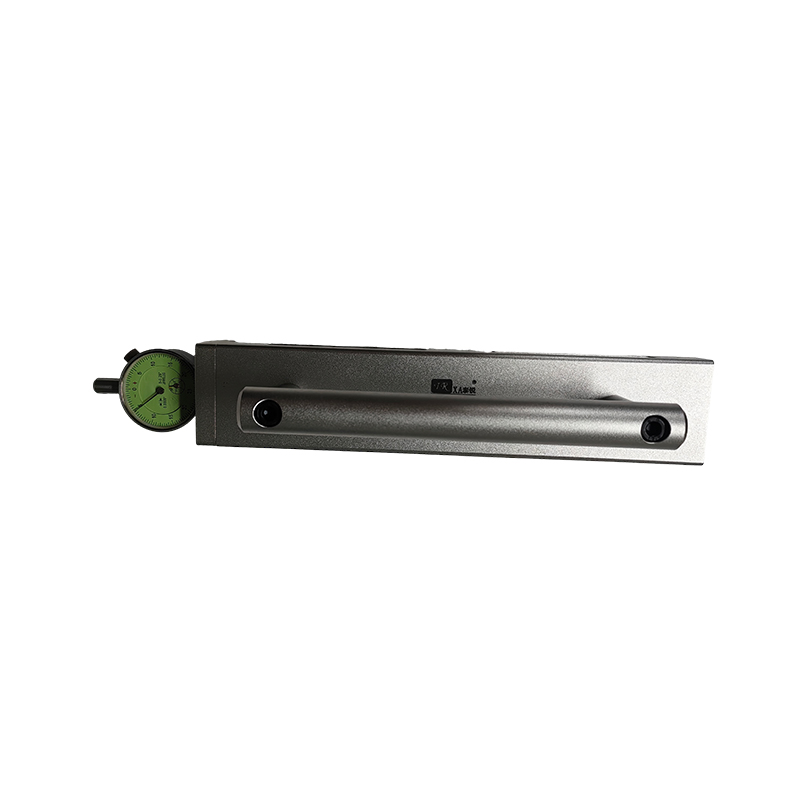

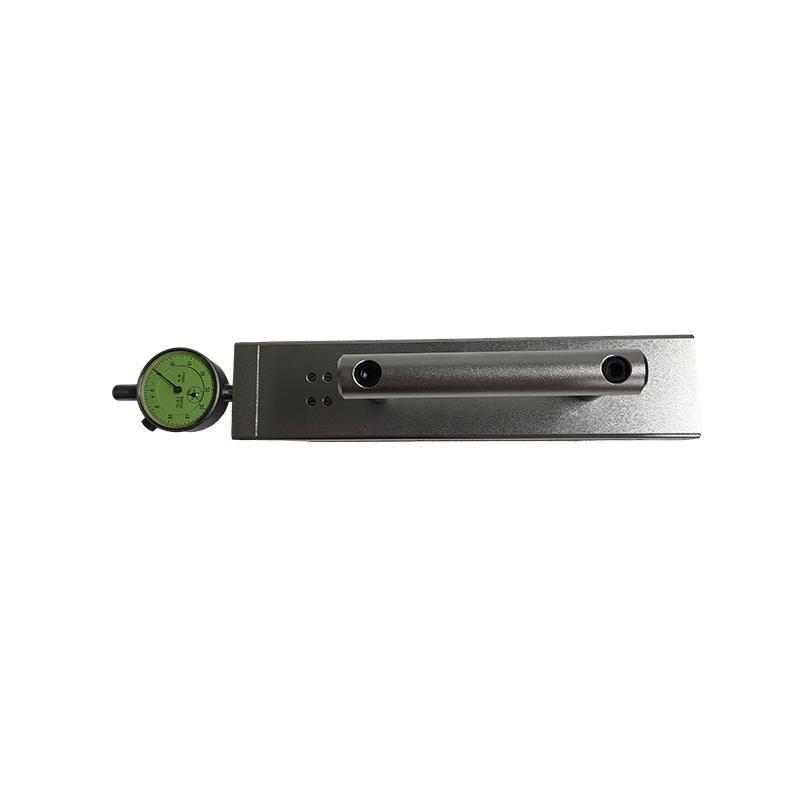

ESG011Y/ ESG012Y/ESG013Y/ESG014Y

Model	Application	Indicator Res.
ESG011Y	2⅜"-5½"	0-0.25"×0.0005″
ESG012Y	2⅜"-7"
ESG013Y	2⅜"-9⅝"
ESG014Y	2⅜"-13⅜"

*Customer can customize Movable Spacer Blocks to meet the special distance from the face of the connector to the measuring plane

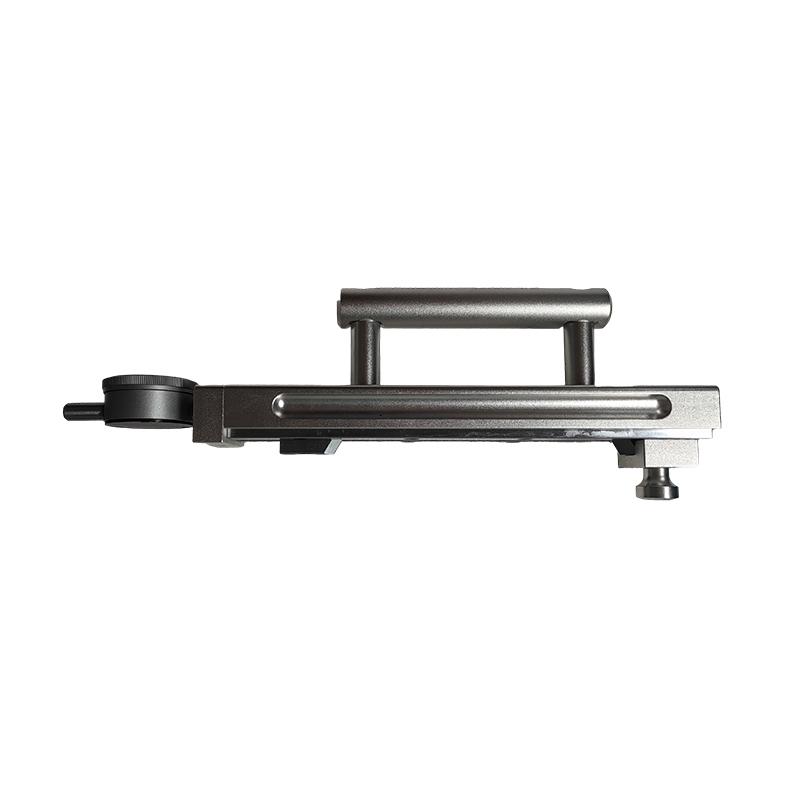

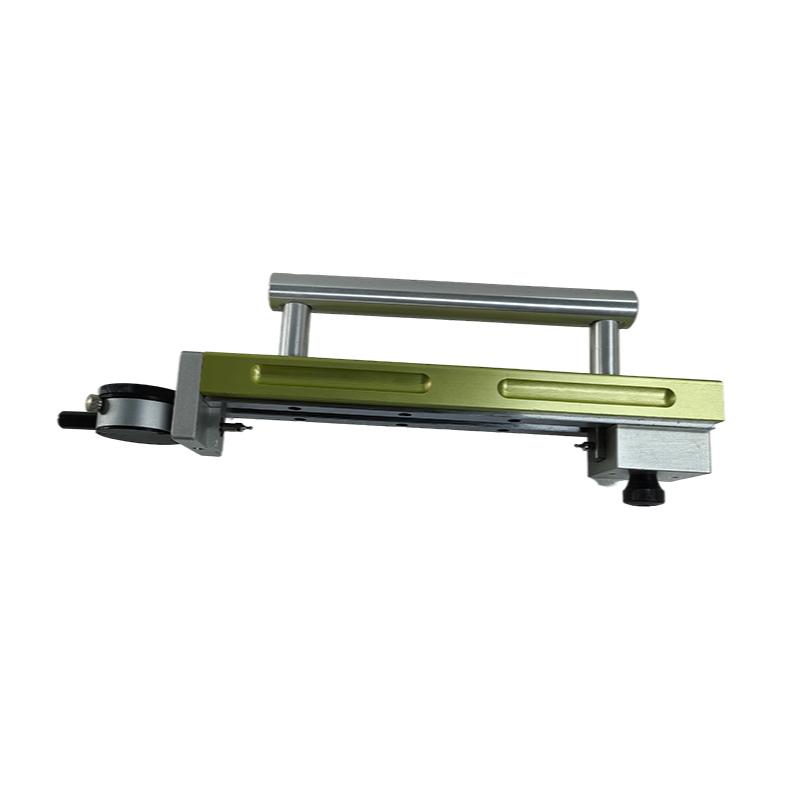

ESG021M/ ESG022M/ESG023M/ESG024M

Model	Application	Indicator Res.
ESG021M	2⅜"-5½"	0-5mm/0-10mm×0.01mm
ESG022M	2⅜"-7"	0-5mm/0-10mm×0.01mm
ESG023M	2⅜"-9⅝"	0-5mm×0.01mm
ESG024M	2⅜"-13⅜"	0-5mm×0.01mm

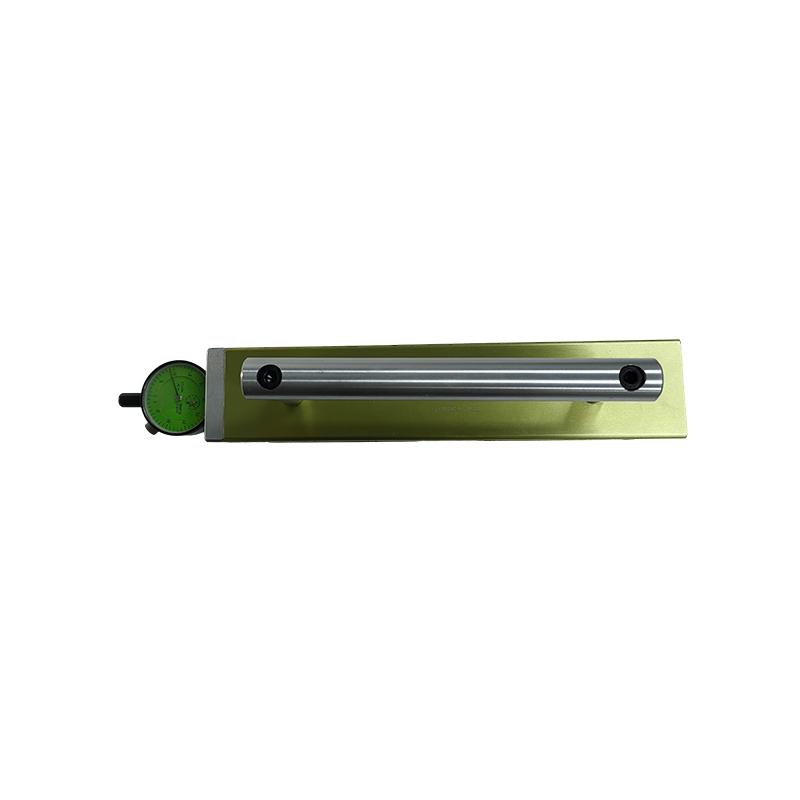

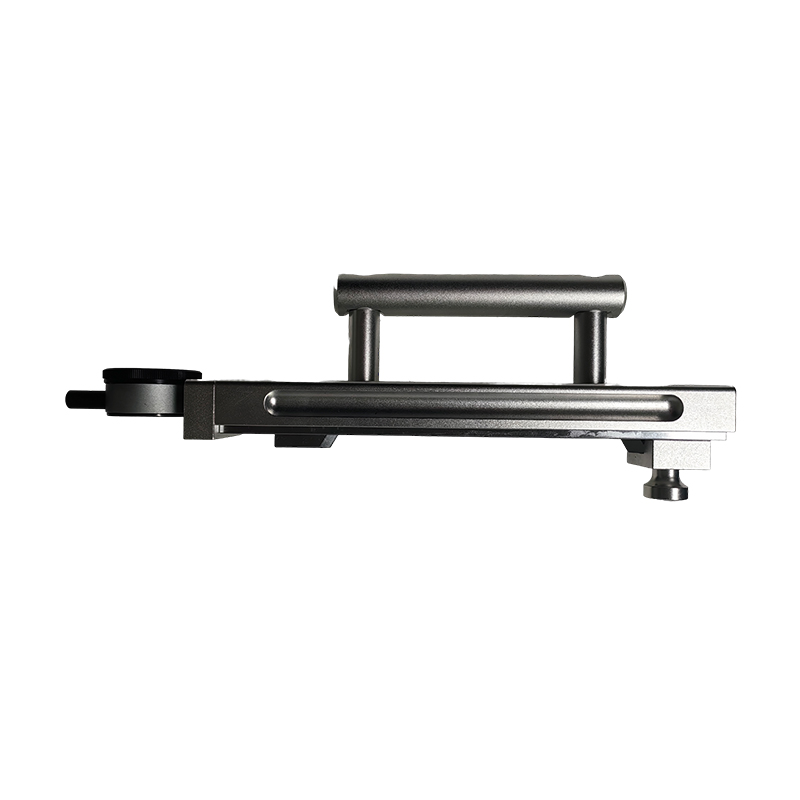

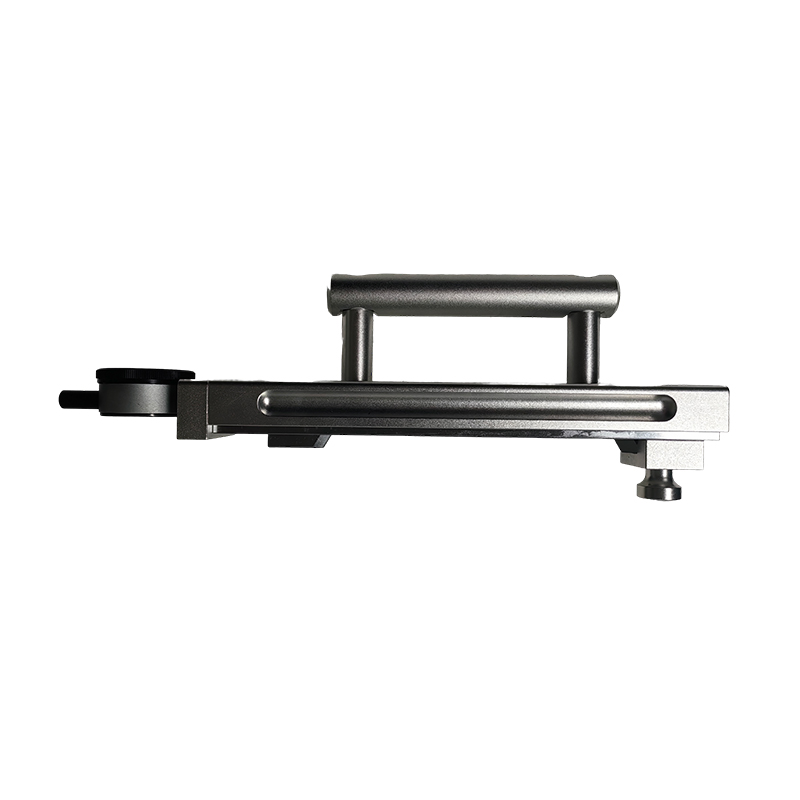

ESG021Y/ ESG022Y/ESG023Y/ESG024Y

Model	Application	Indicator Res.
ESG021Y	2⅜"-5½"	0-0.25"×0.0005″
ESG022Y	2⅜"-7"
ESG023Y	2⅜"-9⅝"
ESG024Y	2⅜"-13⅜"

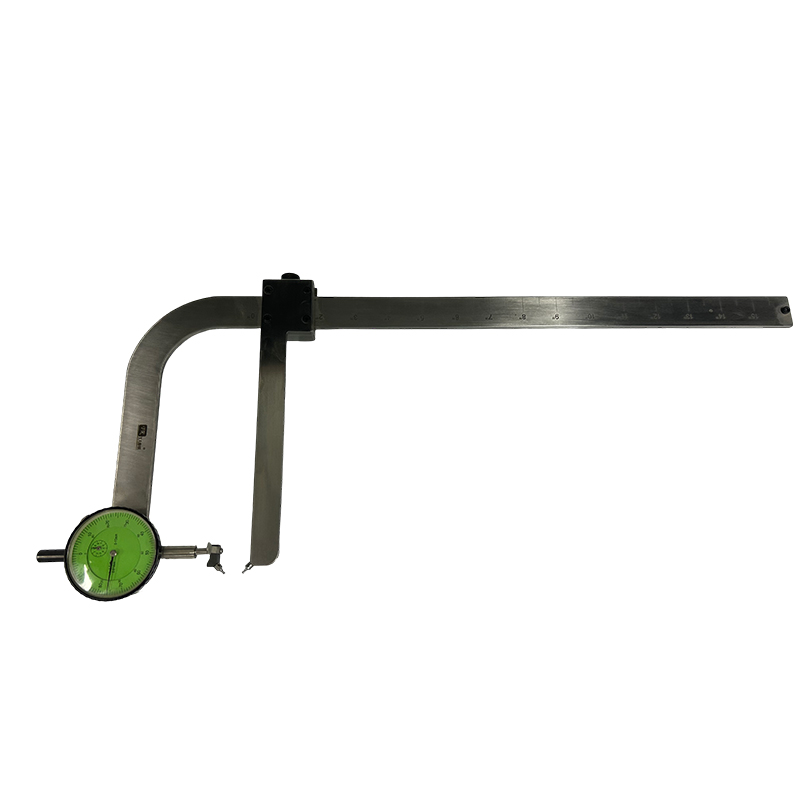

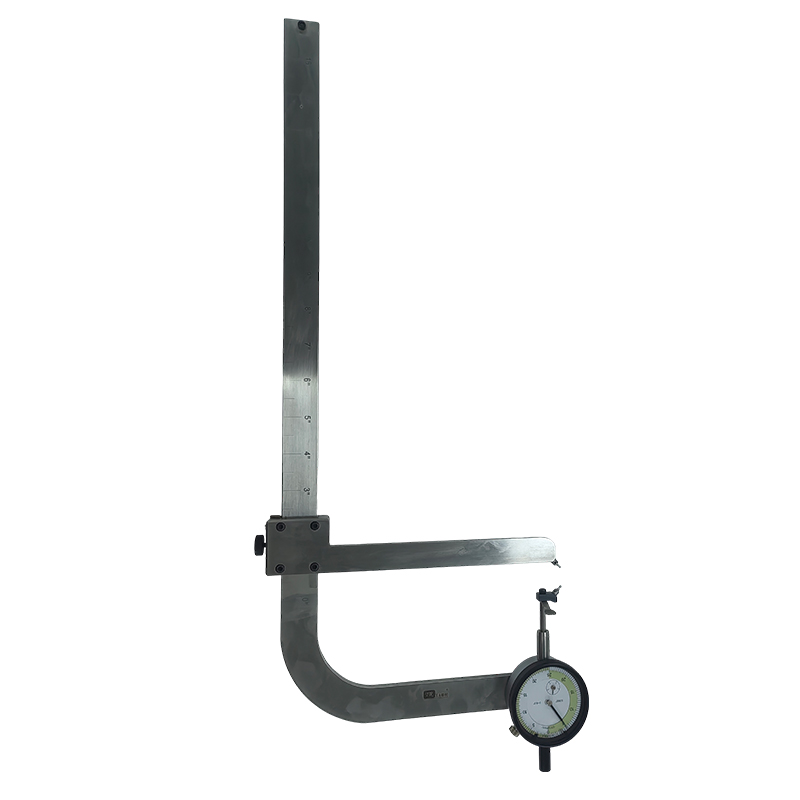

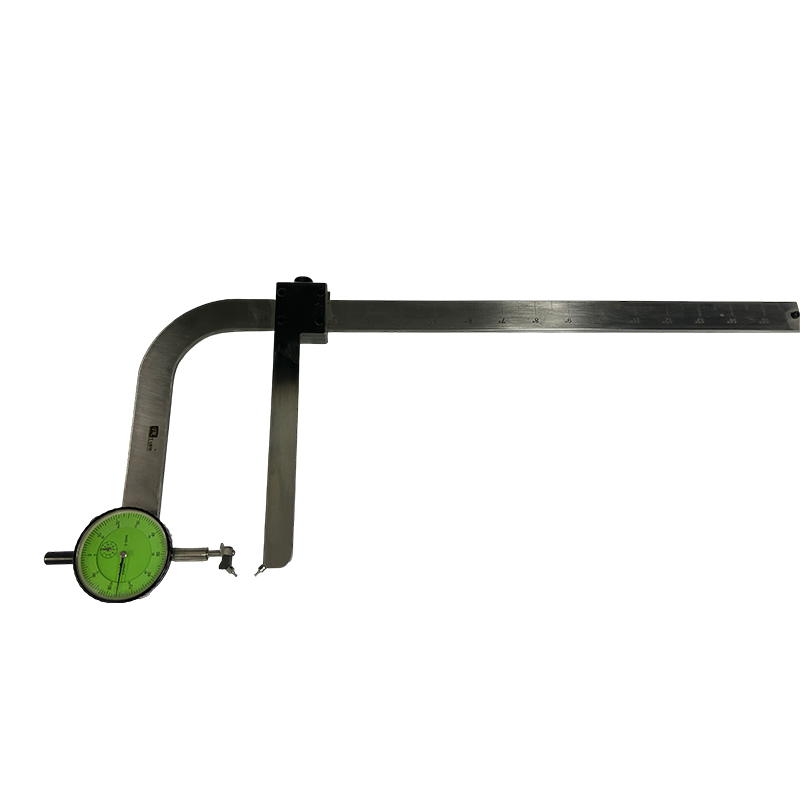

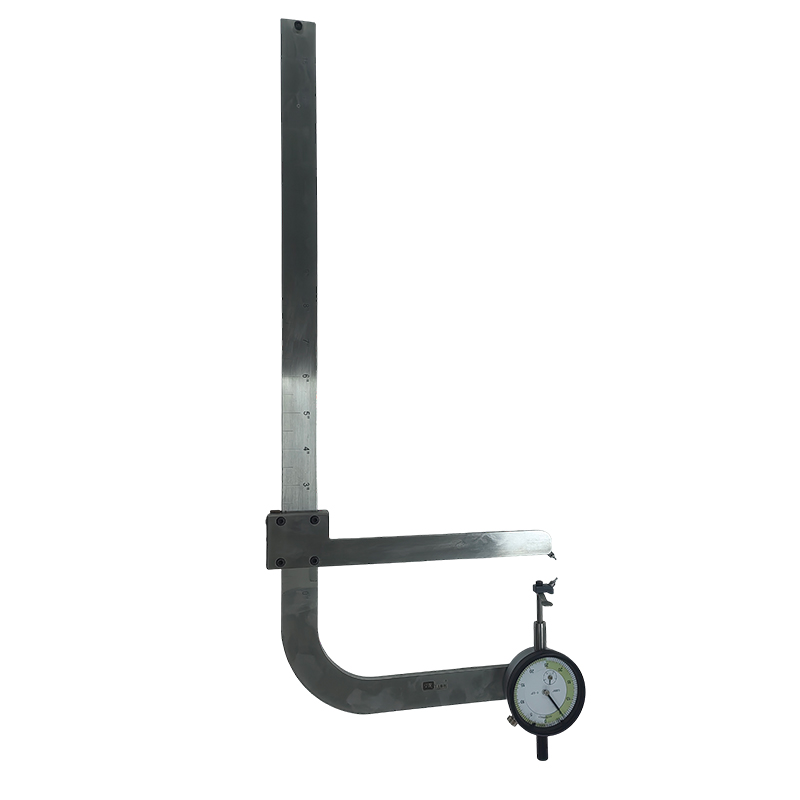

ESG031M/ESG032M/ESG031Y/ESG032Y

Model	Application	Indicator Res.
ESG031M	2⅜"-7"	0-10mm×0.01mm
ESG032M	7"-13⅜"	0-10mm×0.01mm
ESG031Y	2⅜"-7"	0-0.5"×0.001"
ESG032Y	7"-13⅜"	0-0.5"×0.001"

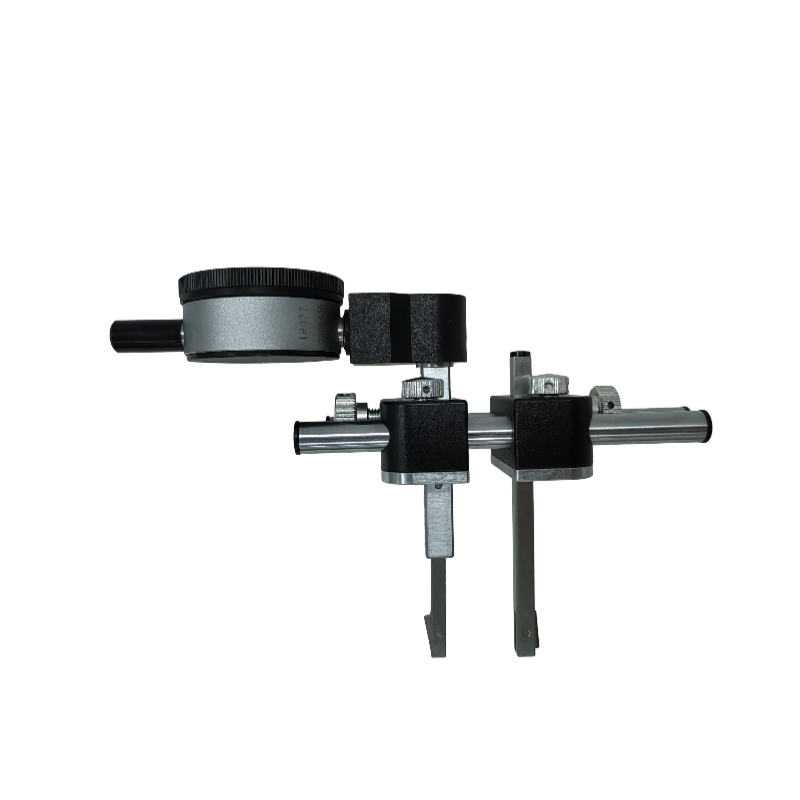

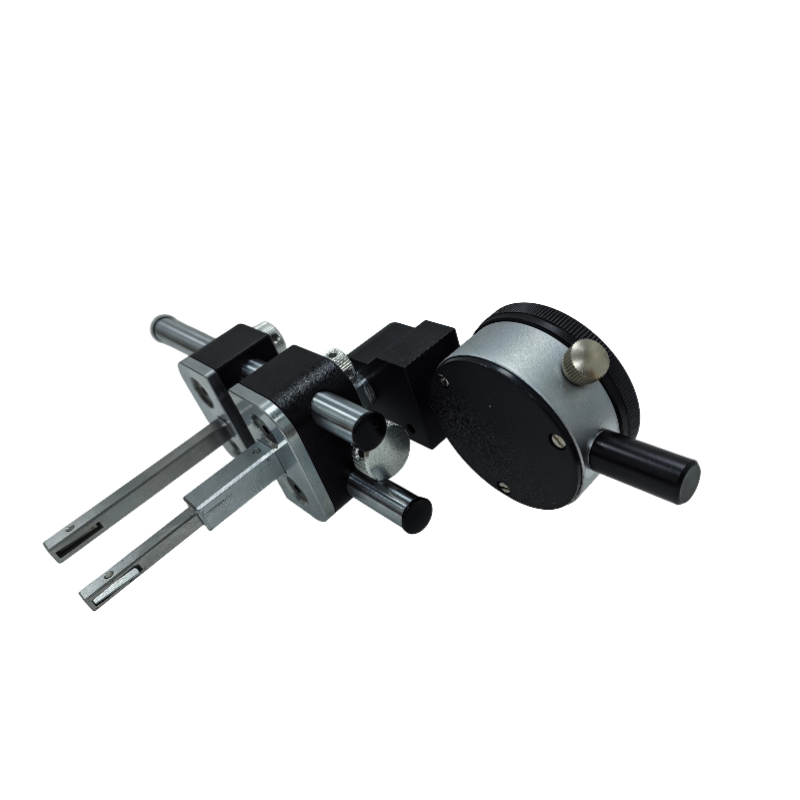

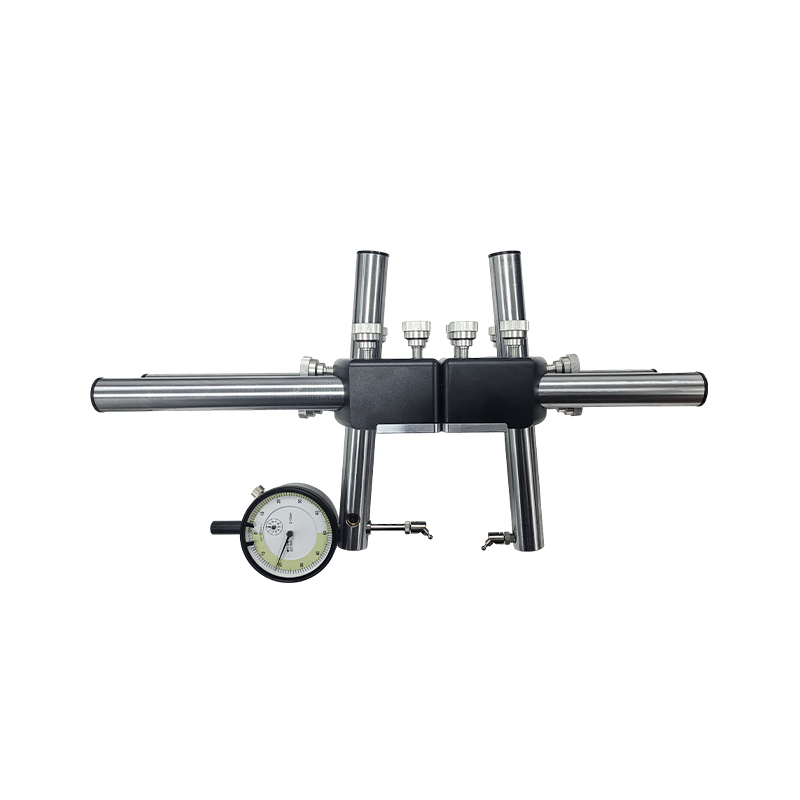

ESG041M/ESG042M/ESG041Y/ESG042Y

Model	Application	Indicator Res.
ESG041M	2⅜"-5½"	0-5mm×0.01mm
ESG042M	2⅜"-13⅜"	0-10mm×0.01mm
ESG041Y	2⅜"-5½"	0-0.25"×0.0005"
ESG042Y	2⅜"-13⅜"	0-0.5"×0.0005"
